MN10

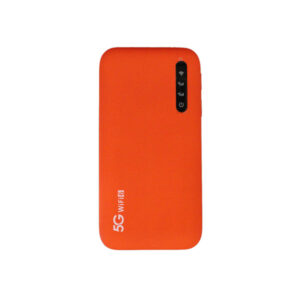

5G Portable MiFi MN10
MN10 is a 5G portable MiFi, sharing the best 5G Access for your better life.
Product Gallery
Basical Information
Model Name MN40
Prodcut Type 5G Portable MiFi
Dimension Body: 115*108*22mm Package: 295*140*125mm
Weight Body: about 368g Package: 1kg
Color White, customization is available
OEM Yes
Air Interface
Technical Standard Compatible with WCDMA, FDD-LTE, TDD-LTE, 5G, Wi-Fi 802.11 a/b/g/n/ax
Frequency
LTE TDD: B34/38/39/40/41
LTE FDD: B1/B3/B5/B8 |B1+B3 B1+B1 B3+B3 B39+Bq1 B39+B39 Bq0+Bq0 Bq1+Bq1
5G NR FDD:N1/N3/N28TID:N41/N78
Wi-Fi 2.4GHz&5Ghz (5.8GHz),WiFi 2*2 MIMO,802.11 a/b/g/n/ac
Performance
Maximum Data Throughput 2Gpbs/500Mbps
Hardware
Receive Diversity Support
MIMO Support DL 2×2 MIMO
Power DC IN DC5V/2A
USIM/SIM 1*Sim Card, ESIM option
LED Power Indication, WiFi Indication, 4G Status, 5G Status
USB Type C
Antenna Internal Antenna
Buttons POWER, Reset
Software
Main SIM PIN, APN, Band Lock, Cell Lock, Carrier SIM Lock, TR069, AT Command, FOTA, RNDIS, ebgui
Environment
Operating Temperature Normal:-10°C to +65°C;
Storage Temperature -20° C to +85° C
Humidity 5%~ 95%
Industrial Applications
- Remote data monitoring & control (SCADA / telemetry)
- CCTV & security surveillance backhaul
- AMR automatic meter reading — water, gas, oil flow
- Power station & distribution network supervision
- POS terminals, ATM & vending machines
- Traffic signal & street lamp monitoring
- Fleet management & vehicle diagnostics
- Hydrologic / weather station data acquisition
- Telecom base-station equipment supervision
Always-Online Failover
Cellular, wired WAN and Wi-Fi client back each other up automatically. When one link drops, traffic switches in seconds — your SCADA polling never notices.
Serial DTU for Legacy Devices
Optional RS232/RS485 port bridges Modbus RTU meters and decades-old controllers onto IP networks. No forklift upgrade — the serial device just gains a 4G link.
Full VPN Suite On Board
IPsec, L2TP, PPTP and GRE tunnels terminate directly on the router. Site data reaches your platform encrypted, without extra security appliances.
Built for Outdoor Cabinets
Wide-temperature components, enhanced ventilation and a compact metal body fit cramped street cabinets and survive them. Rated for −35 °C cold starts to +75 °C summer heat.
Self-Healing Watchdog
A hardware watchdog plus multi-layer link detection restarts frozen links before anyone calls you. Unattended sites keep working for years, not weeks.
Fleet Management via NMS
Every H685T reports signal, traffic and status to E-Lins NMS cloud. Push configs and firmware to one unit or ten thousand — from a single dashboard.
Typical Deployment Topology
RTU / PLC / Meter
Modbus RTU • Ethernet
existing field device
existing field device
RS485 / LAN
H685T Router
DTU gateway • VPN tunnel
failover & watchdog
failover & watchdog
4G TDD-LTE
4G Network
carrier network
B38/39/40/41
B38/39/40/41
IPsec / MQTT
Cloud Platform
SCADA center • E-Lins NMS
your IoT application
your IoT application
MN40 in the E-Lins 4G Family
| MN40 This Model | H820 4G CAT6 Router | H685f-W6 | H900frc | |
|---|---|---|---|---|
| Product Type | - | - | Indoor | Indoor |
| Cellular Connectivity | - | - | Cellular | Cellular |
| Connectivity Type | - | - | 5G SA/5G NSA | 5G RedCap |
| Ethernet Ports | - | - | 2 EH Ports | 5 EH Ports |
| SIM Card | - | - | Single SIM | Dual SIM |
| Ethernet Speed | - | - | 10/100/1000Mbps | 10/100/1000Mbps |
| PoE | - | - | Active PoE In/PoE PD | Active PoE In/PoE PD |
| Wi-Fi | - | - | Wi-Fi 6 | No Wi-Fi |
| SFP Port | - | - | No SFP | No SFP |
| Serial | - | - | RS232 | RS232 |
| Features | - | - | Single SIM/Active PoE In | Dual SIM/PoE In/PoE Out/eSIM |
| Industrial Protocols | - | - | Modbus/DNP3 | Modbus/DNP3/eSIM |
| Network Protocols | - | - | MQTT/TCP/UDP/IPv4/IPv6/DNS/HTTP/NTP/ICMP | MQTT/TCP/UDP/IPv4/IPv6/DNS/HTTP/NTP/ICMP |
| Operating System | - | - | Linux | Linux |
| Power Socket | - | - | DC | 3 PIN Jack |
| Datasheet | MN40 ↓ | H820 4G CAT6 Router → | H685f-W6 → | H900frc → |
