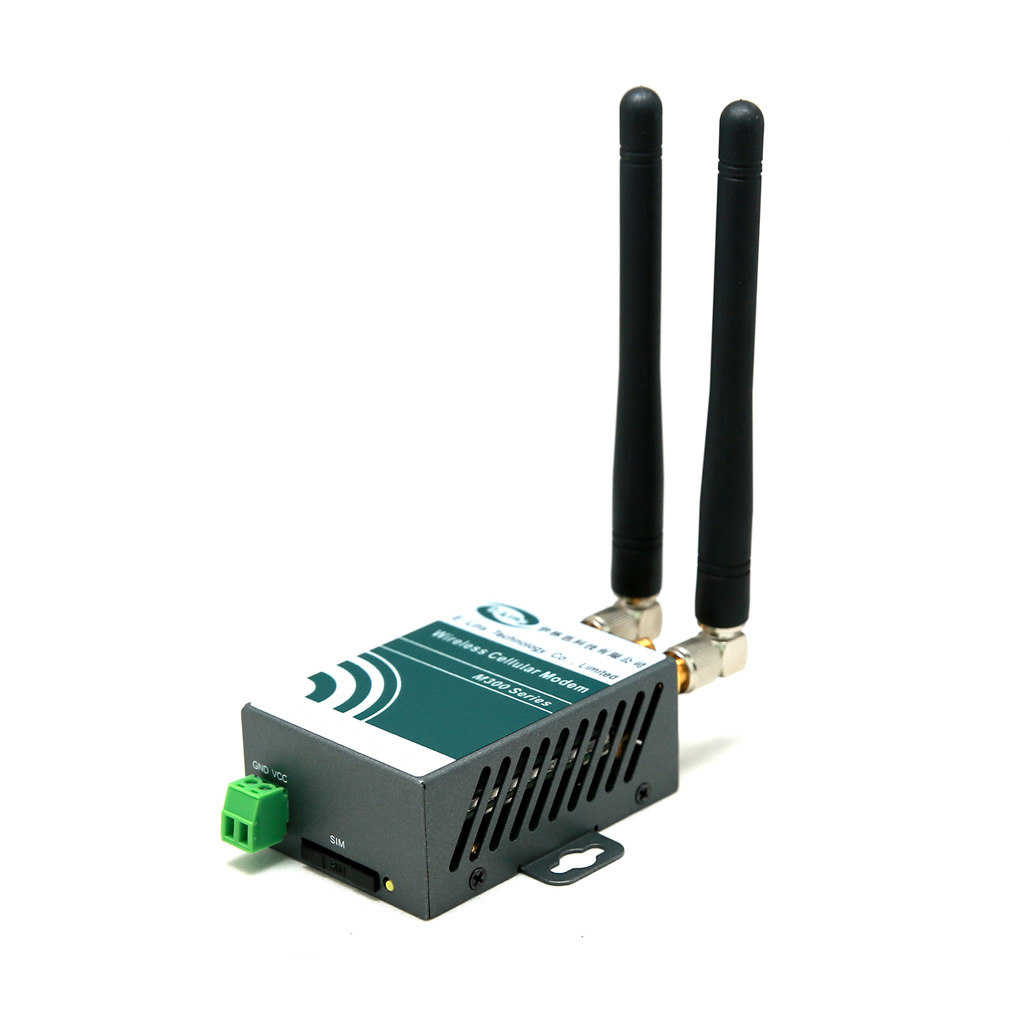

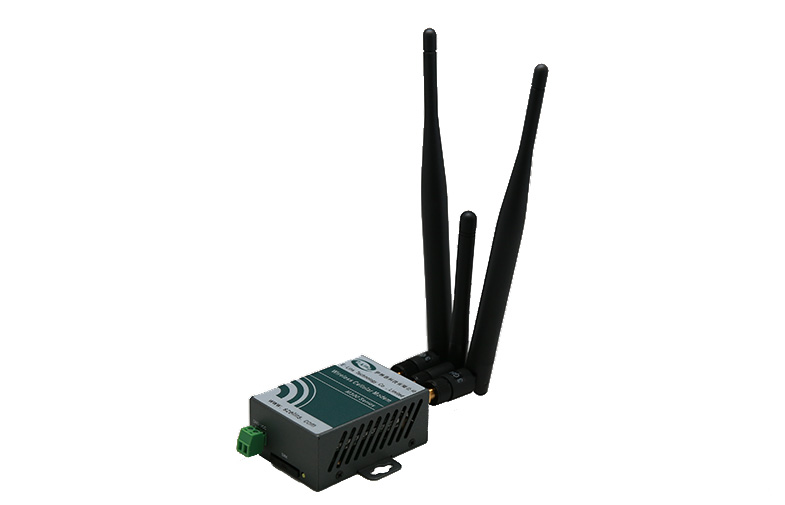

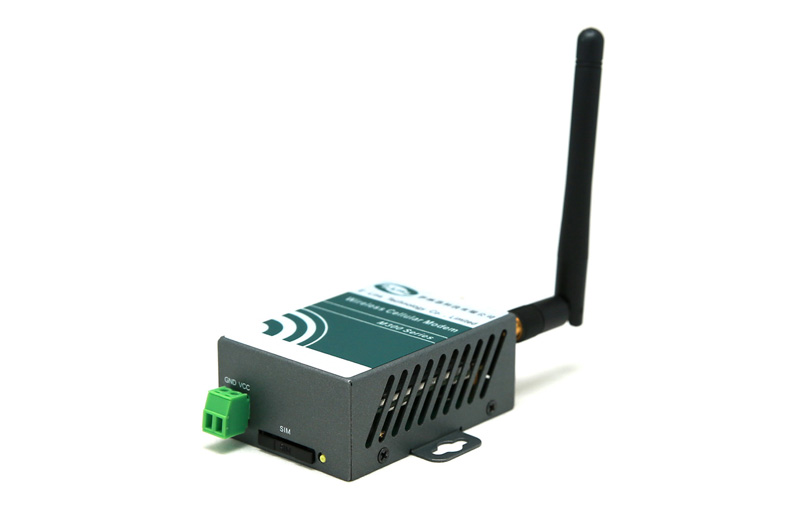

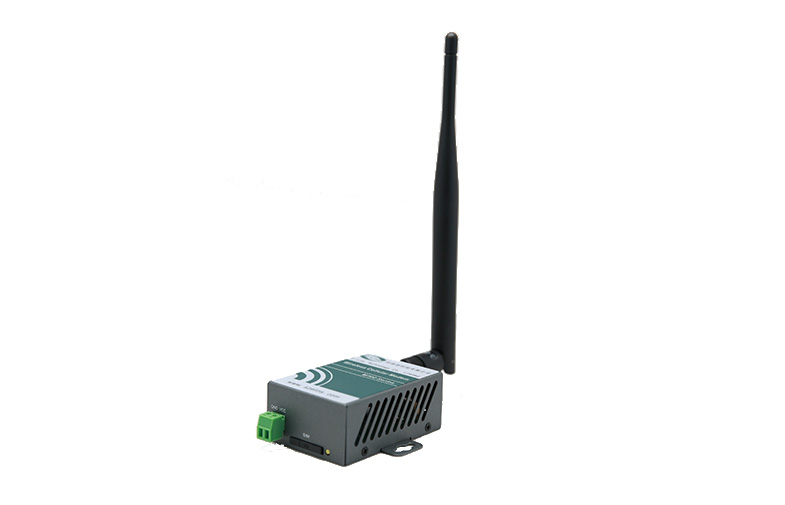

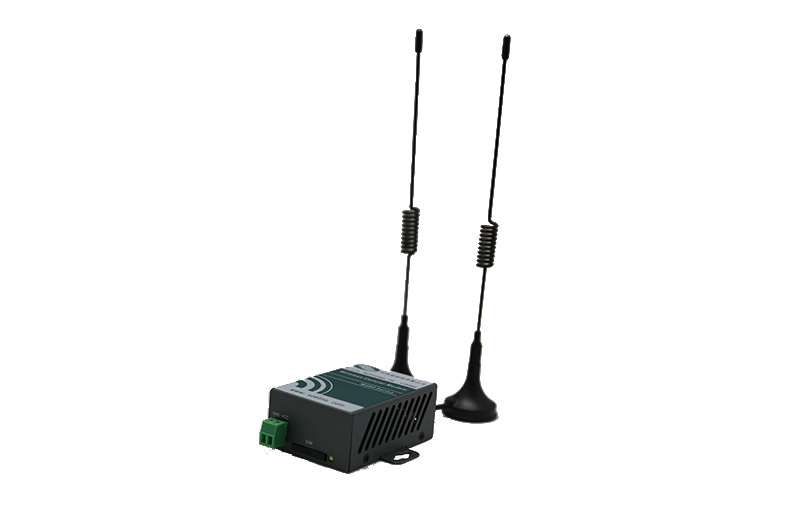

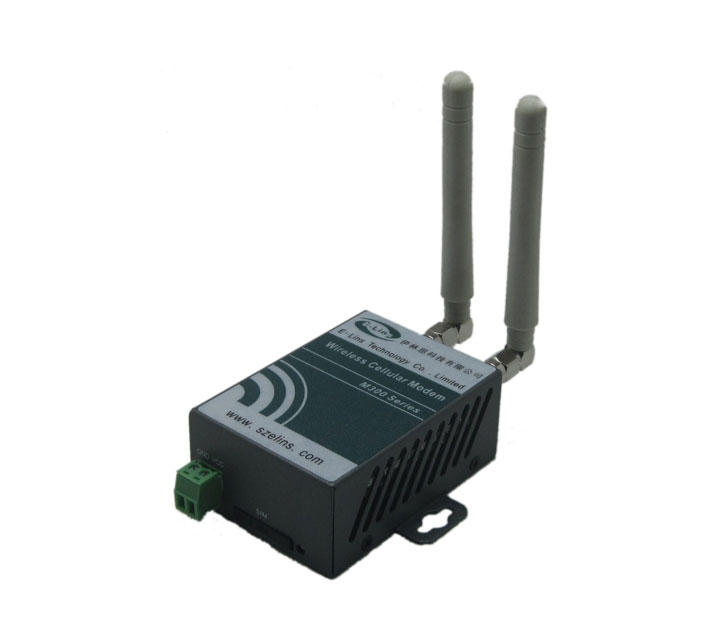

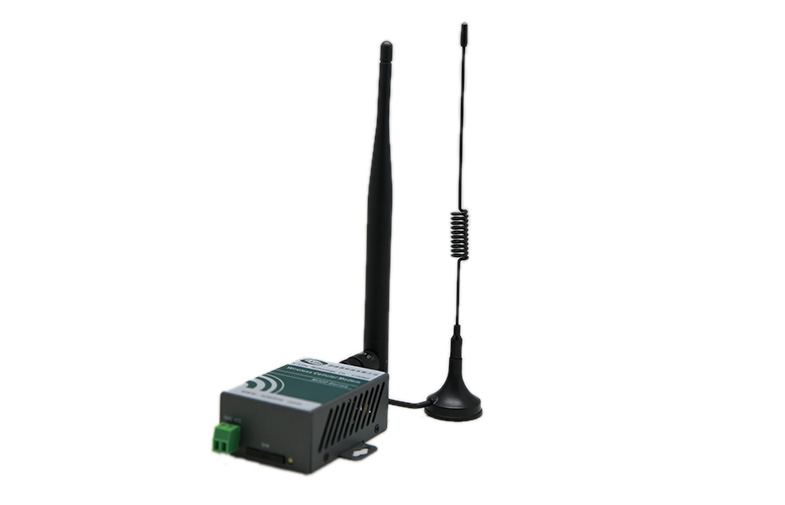

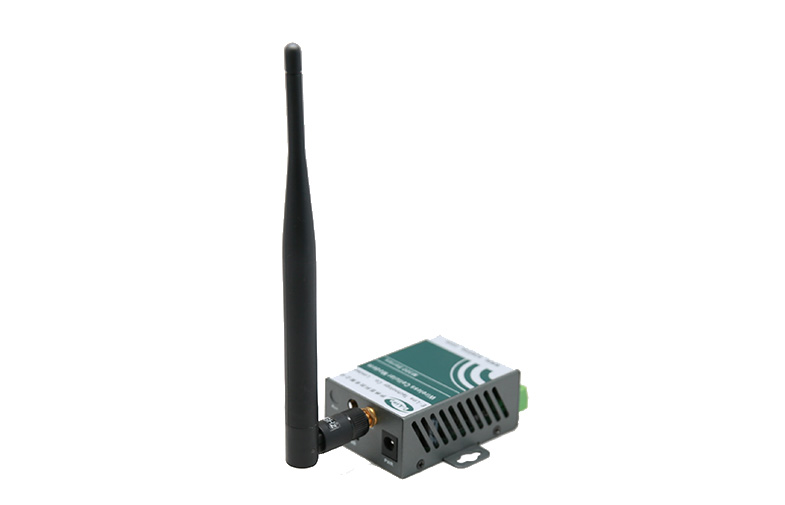

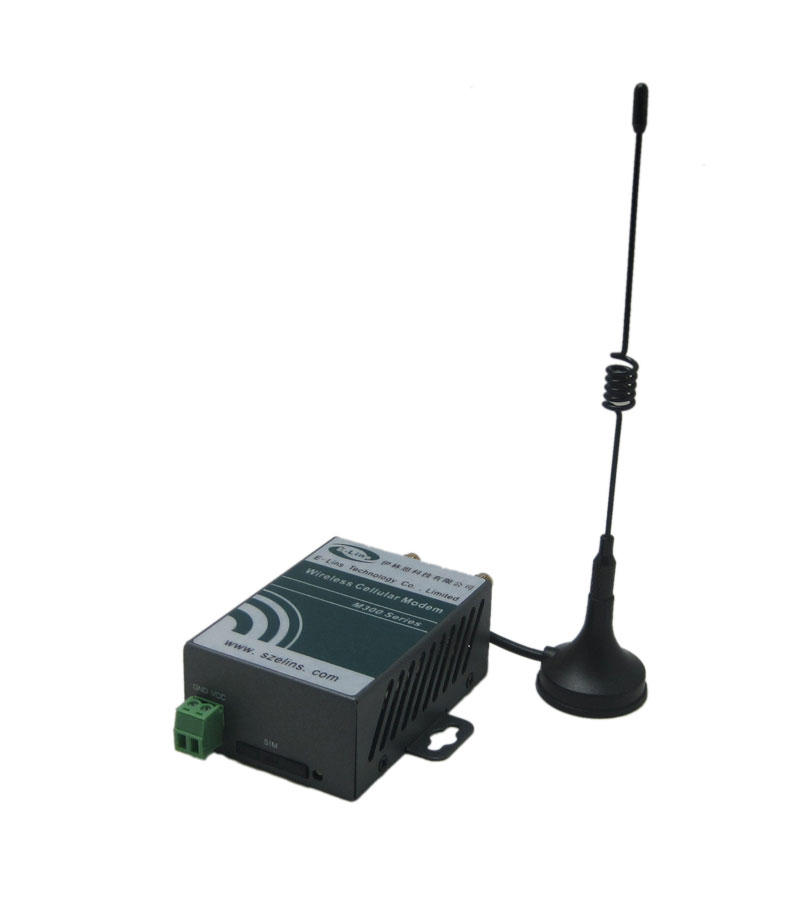

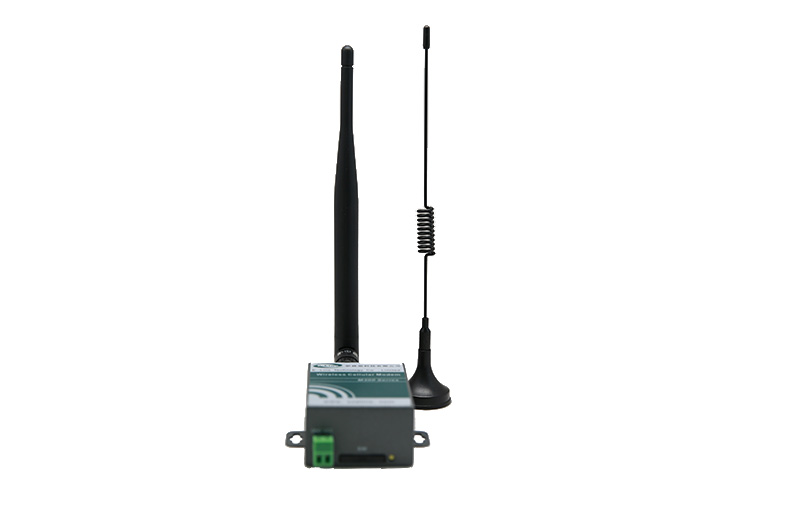

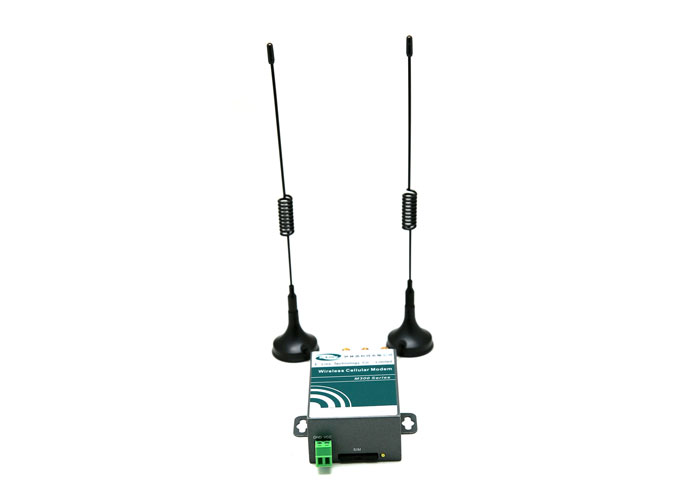

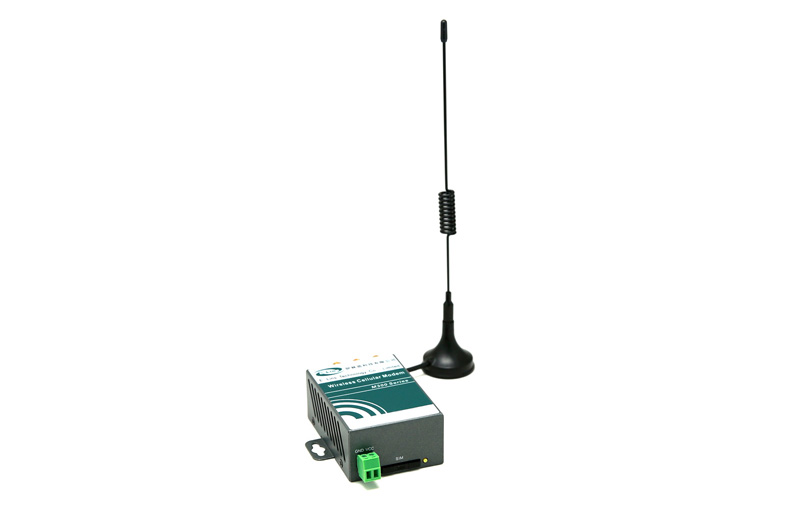

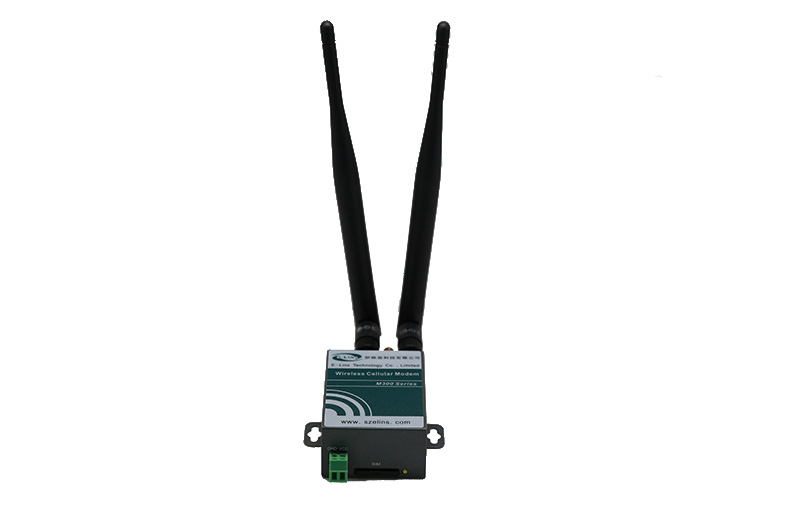

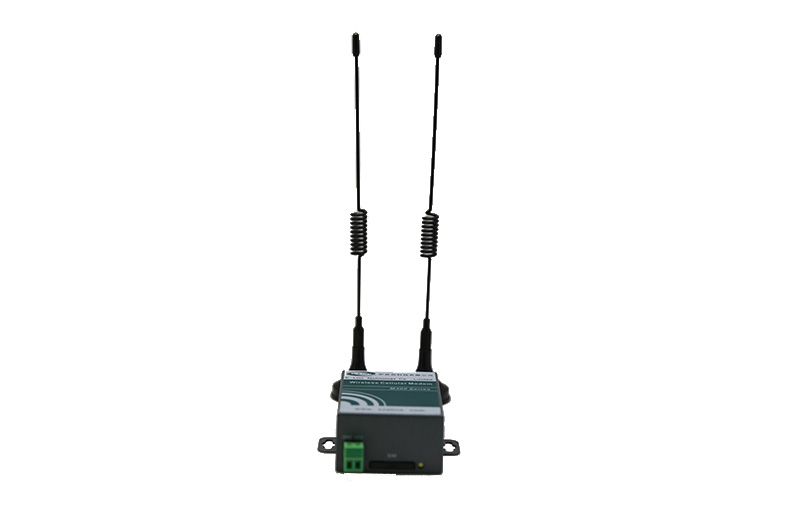

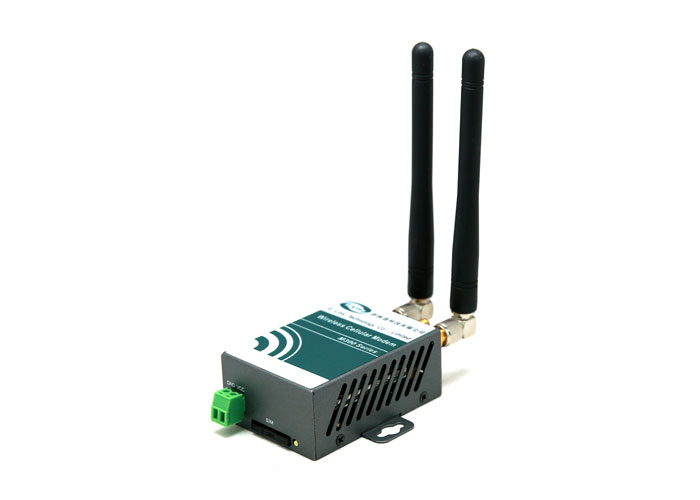

M300 4G Modem

Technical Specifications

<table id="" class="table padding-3 size-12" style="border-collapse: inherit;" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td colspan="4"><strong>Wireless</strong></td>
</tr>
<tr>
<td class="cond_padding_0 border ">Mobile Networks</td>
<td class="cond_padding_0 border ">4G LTE (FDD/TDD)

3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

2G GSM EDGE/GPRS

CDMA1x

CDMA2000 EVDO Rev 0/Rev A/Rev B

TD-SCDMA(TD-HSDPA/TD-HSUPA)</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Cellular Frequency</td>
<td class="cond_padding_0 border ">4G FDD LTE:

Band 1--2100Mhz

Band 2--1900Mhz

Band 3--1800Mhz

Band 4--AWS(1700/2100Mhz)

Band 5--850Mhz

Band 7--2600MHz

Band 8--900Mhz

Band 12--700Mhz

Band 13--700(B13)Mhz

Band 17--700(B17)/AWS

Band 19--800Mhz

Band 20--DD800Mhz

Band 21

Band 25--1900Mhz G Block

Band 31--450Mhz

Other FDD bands (some bands are not listed)…

4G TDD LTE (TD-LTE):

Band 43--3600-3800Mhz

Band 42--3400- 3600Mhz

Band 41--2500/2600Mhz

Band 40--2300Mhz

Band 39--1900Mhz

Band 38--2600Mhz

Other TDD bands (some bands are not listed)…

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD) 850/1900/2100 MHz or 850/900/1900/2100Mhz/AWS optional

Quad-band EGSM 850/900/1800/1900Mhz

CDMA1x/EVDO: 800/1900Mhz or 450Mhz optional

3G TD-SCDMA: 2010~2025MHz/1880~1920MHz

Notes: There are many different band and frequency for 4G LTE. Please confirm the detailed band and frequency with your carriers before order.</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Bandwidth</td>
<td class="cond_padding_0 border ">4G LTE

FDD LTE:

downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps;

uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps;

TDD LTE: 150Mbps downlink, 50Mbps uplink;

DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps;

HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;

HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;

EDGE: Downlink 236,8 kbps, Uplink 118 kbps;

GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink 153.6kbps;

CDMA EVDO:

Rev B: 14.7Mbps downlink, 5.4Mbps uplink

Rev A: 3.1Mbps downlink, 2.4Mbps uplink

Rev O: 2.4Mbps downlink, 153.6kbps uplink

3G TD-SCDMA: 2.8Mbps

Notes: the bandwidth is peak value. Real value depends on carrier network support.</td>
</tr>
<tr>
<td colspan="4"><strong>Interface</strong></td>
</tr>

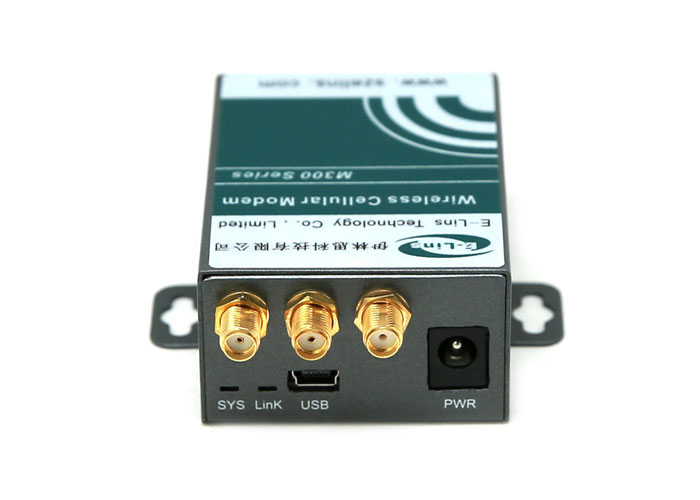

<tr>
<td>Antenna</td>

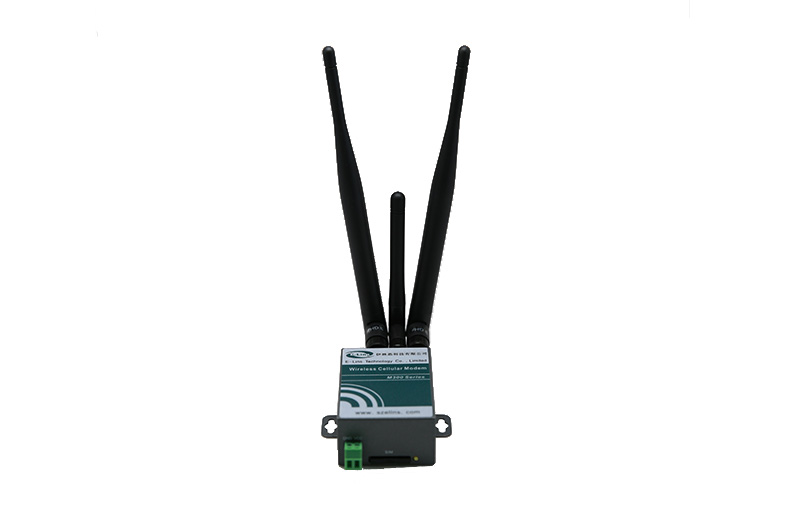

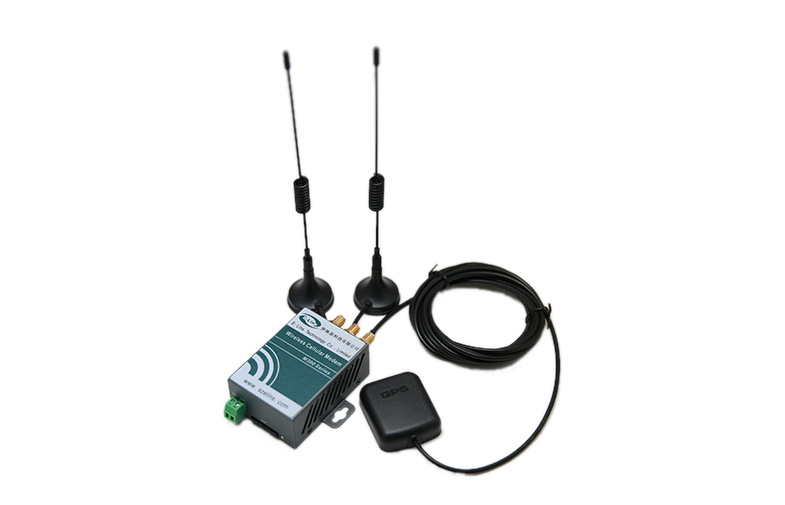

<td class="cond_padding_0 border ">50Ω SMA female interface *3, external detachable;

Antenna for Main Cell, MIMO Cell, GPS</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Led</td>
<td class="cond_padding_0 border ">Power indicator

Data indicator</td>
</tr>
<tr>
<td class="cond_padding_0 border ">UIM/SIM</td>
<td class="cond_padding_0 border ">1.8V/3V</td>
</tr>
<tr>
<td class="cond_padding_0 border ">USB</td>
<td class="cond_padding_0 border ">USB 2.0 female</td>
</tr>
<tr>
<td colspan="4"><strong>Power</strong></td>
</tr>
<tr>
<td class="cond_padding_0 border ">Power supply</td>
<td class="cond_padding_0 border ">DC5V-40V, option DC5V-60V, typical DC9V1A or 12V1A or 12V2A;

Dual Power Inputs / Power Failover;

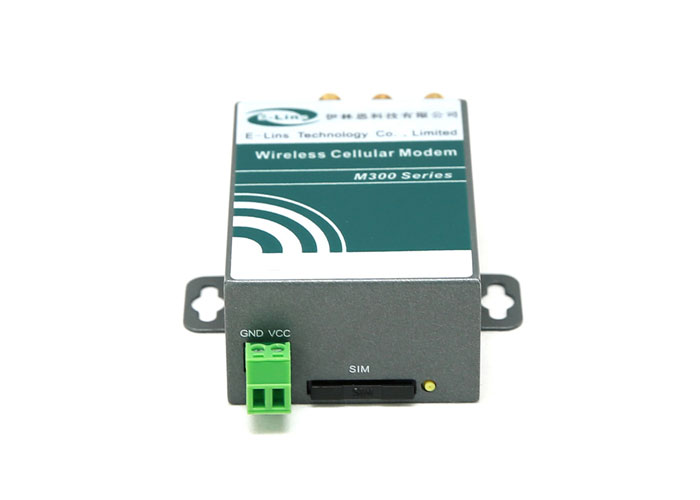

Two types of input jack for DC

2.5mm DC jack * 1

Terminal Block * 1</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Power consumption</td>
<td class="cond_padding_0 border ">Peak: 700mA@+9VDC

Average: 85mA@+9VDC

Idle: 30mA@+9VDC</td>
</tr>
<tr>
<td colspan="4"><strong>Software</strong></td>
</tr>
<tr>
<td class="cond_padding_0 border ">Minimum System Requirements</td>
<td class="cond_padding_0 border ">Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support USB port;</td>
</tr>
<tr>
<td class="cond_padding_0 border ">At command</td>
<td class="cond_padding_0 border ">Support at command;

Packed with GUI software</td>
</tr>
<tr>
<td colspan="4"><strong>Physical</strong></td>
</tr>
<tr>
<td class="cond_padding_0 border ">Operating Temperature</td>
<td class="cond_padding_0 border ">Work temperature: -35C to 75C option for -30°C to 80°C

Storage temperature: -40°C to 85°C</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Humidity</td>
<td class="cond_padding_0 border ">95% Maximum (Non-condensing)</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Dimensions</td>
<td class="cond_padding_0 border ">Item (L x B x H): 87mm*50mm*23mm

Packaging (L x B x H): 102*70*23mm

PCBA: 84mm*48mm*20mm</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Weight</td>
<td class="cond_padding_0 border ">150g (not including accessories and package)</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Electromagnetic compatibility</td>
<td class="cond_padding_0 border ">anlistatig test: Class 3

Radio electromagnetism test: Class 3</td>
</tr>
<tr>
<td colspan="4"><strong>Others</strong></td>
</tr>
<tr>
<td class="cond_padding_0 border ">Warranty</td>
<td class="cond_padding_0 border ">1 Year, can extend up to 5 years</td>
</tr>
<tr>
<td class="cond_padding_0 border ">Package Contents</td>
<td class="cond_padding_0 border ">The M300 Series Modem

USB cable

Power Adapter

Antenna

Other accessories depends on option features</td>
</tr>
</tbody>
</table>
