H900pf
The E-Lins H900pf series 5G modem with Ethernet is a compact, ruggedized 3G/4G LTE/5G cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.
3D Model

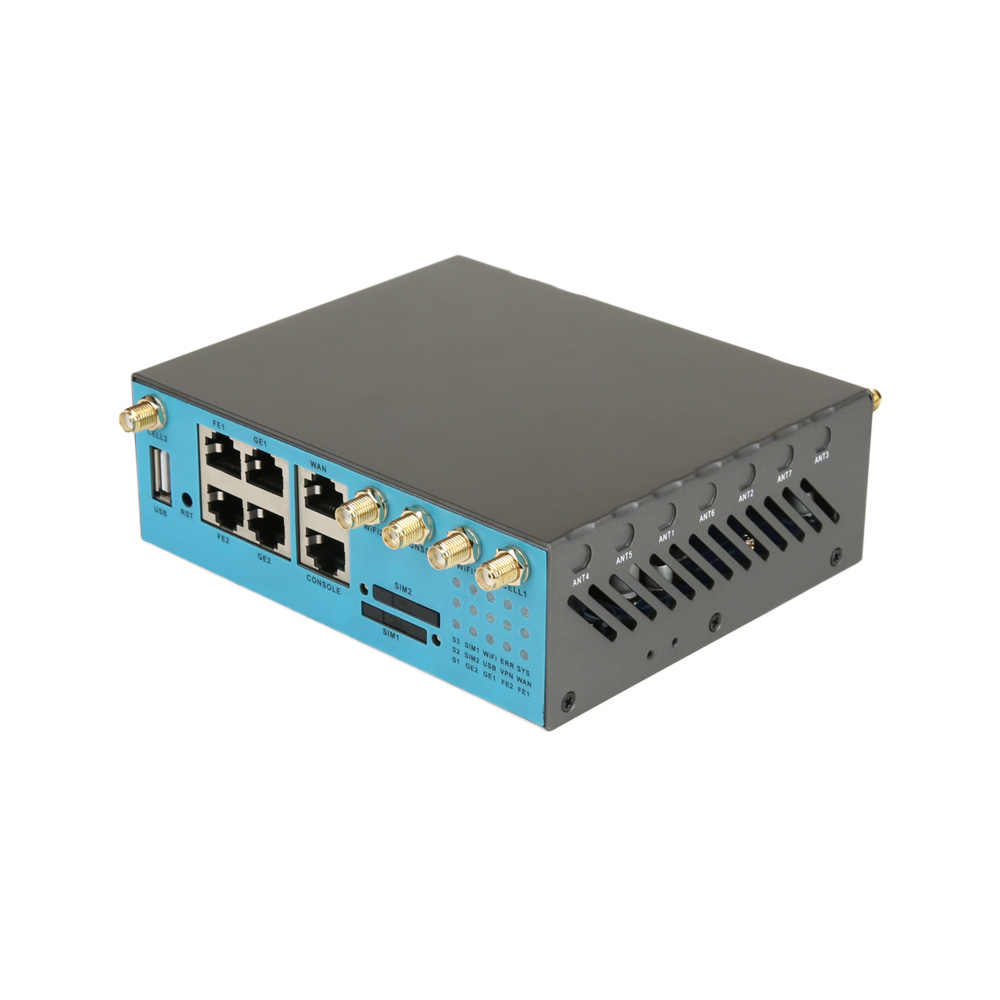

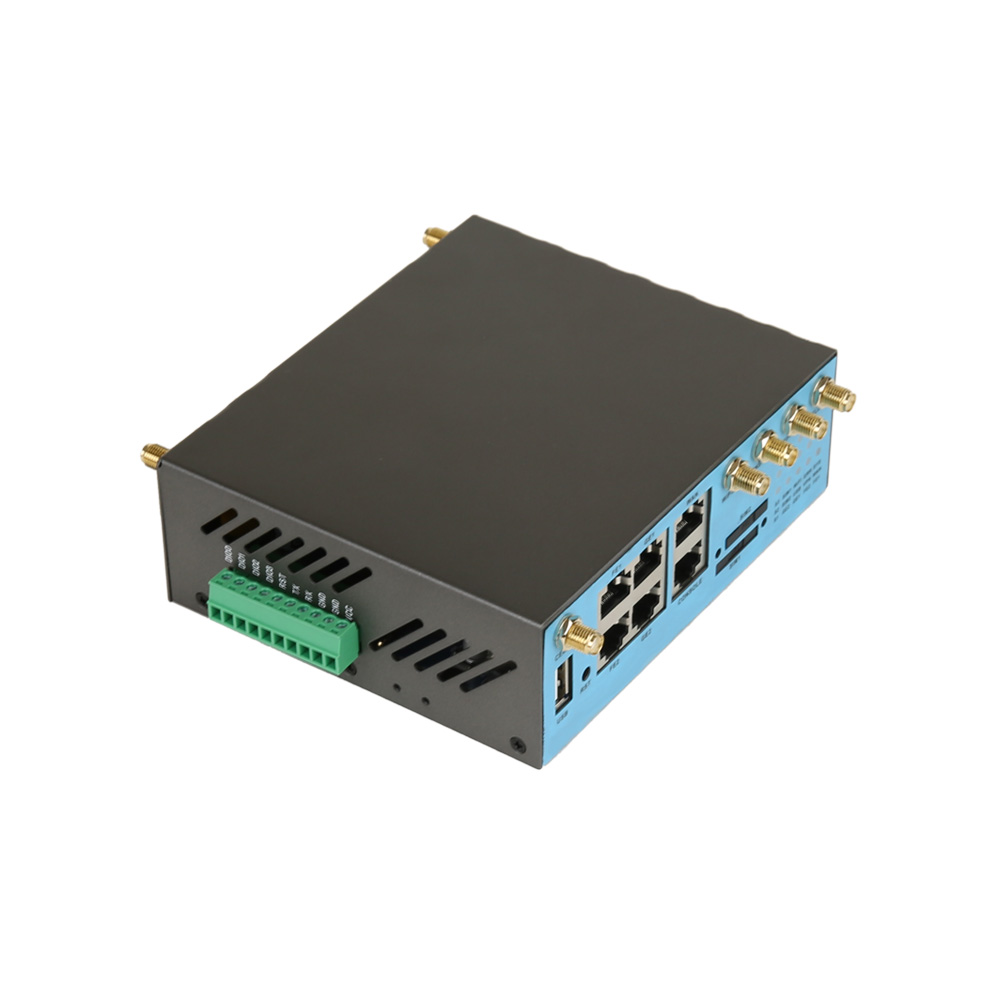

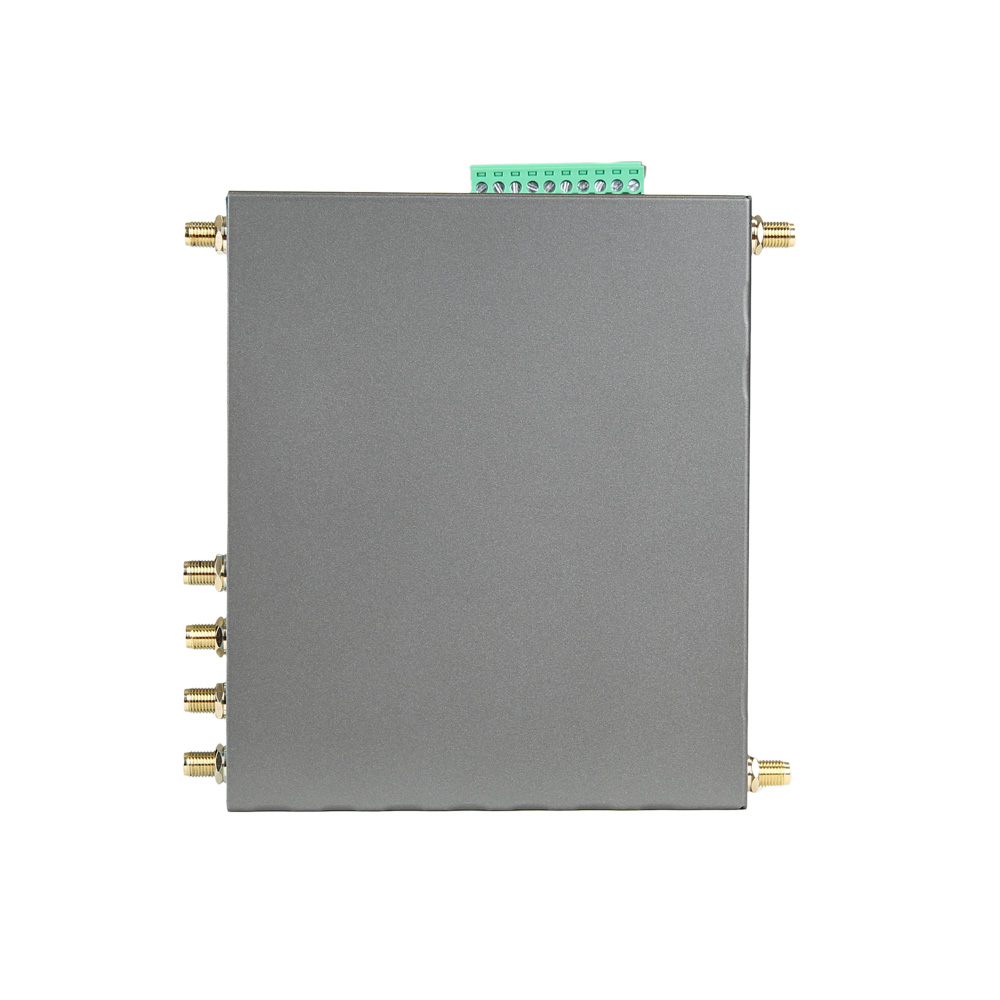

Product Gallery
Introduction Video
Product Overview
The E-Lins H900pf series 5G modem with Ethernet is a compact, ruggedized 3G/4G LTE/5G cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.
In addition to the robustness, reliability, security, friendly-using, the H900pf 5G modem with Ethernet is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.
Highlights
Multi-carrier 3G/4G LTE/5G support with two SIM card slot; Cellular/WAN RJ45/Wi-Fi client failover and Load Balance (Bandwidth link bonding); Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP; Dual-band or Tri-band, dual concurrent Wi-Fi (802.11 a/b/g/n/ac, 2.4Ghz/5Ghz), MU-MIMO WAVE2; Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection; 5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover; GPS / Beidou support; Serial Port; DI/DO port * 4; Supports Ethernet (T1, DSL, Cable, MetroE), Wi-Fi as WAN, and Metro Wi-Fi; Ruggedized to ensure always-on connectivity; Create real-time alerts to monitor uptime; Offer secure, guest Wi-Fi to passengers; Advanced security, VPN, and stateful firewall to protect sensitive data; Robust Metal Case is ruggedized for vibration, shock; Desktop, Wall-mount and Din-rail mount of installation; External antenna connectors for high gain antennas replacement; MIMO supported;
E-Lins has a better industrial design
Industrial Design: Robust and Working in Wide Range Temperature
H900pf 5G modem with Ethernet is industrial designed, excellent function to ensure 7x24h running in stability and reliability;
Wide range power input with dual types of input supported; Alloy-metal case, IP30 protection standard;
Quality industrial grade casing provides robust and reliable 5G modem for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.
With Multi-Powerful-Features
Built-in Industrial Modem Module and Dual SIM Card Slot
The H900pf can built-in industrial class radio modem module to provide robust and reliable cellular network communications. With SIM Card Slot, users can insert two SIM cards to dial-up 3G/4G/5G networks directly.
Dual Band or Tri-band Concurrent WiFi with Wave 2 and MU-MIMO
The H900pf SIM card 5G router provides option 2.4Ghz/5GHz dual band or tri band Wi-Fi with concurrent data transmission to achieve high powerful Wi-Fi performance. Also it supports high gain Wi-Fi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.
With multi radios, H900pf gets 2~3 times number of served clients comparing to normal single radio.
With multi data stream, H900pf gets 3~4 times data bandwidth comparing to normal single data stream.
With MU-MIMO technology, H900pf gets 2~3 times data bandwidth and and number of served clients comparing to normal single radio single data stream.
H900pf SIM card 5G modem supports high gain Wi-Fi replacement to meet different applications.

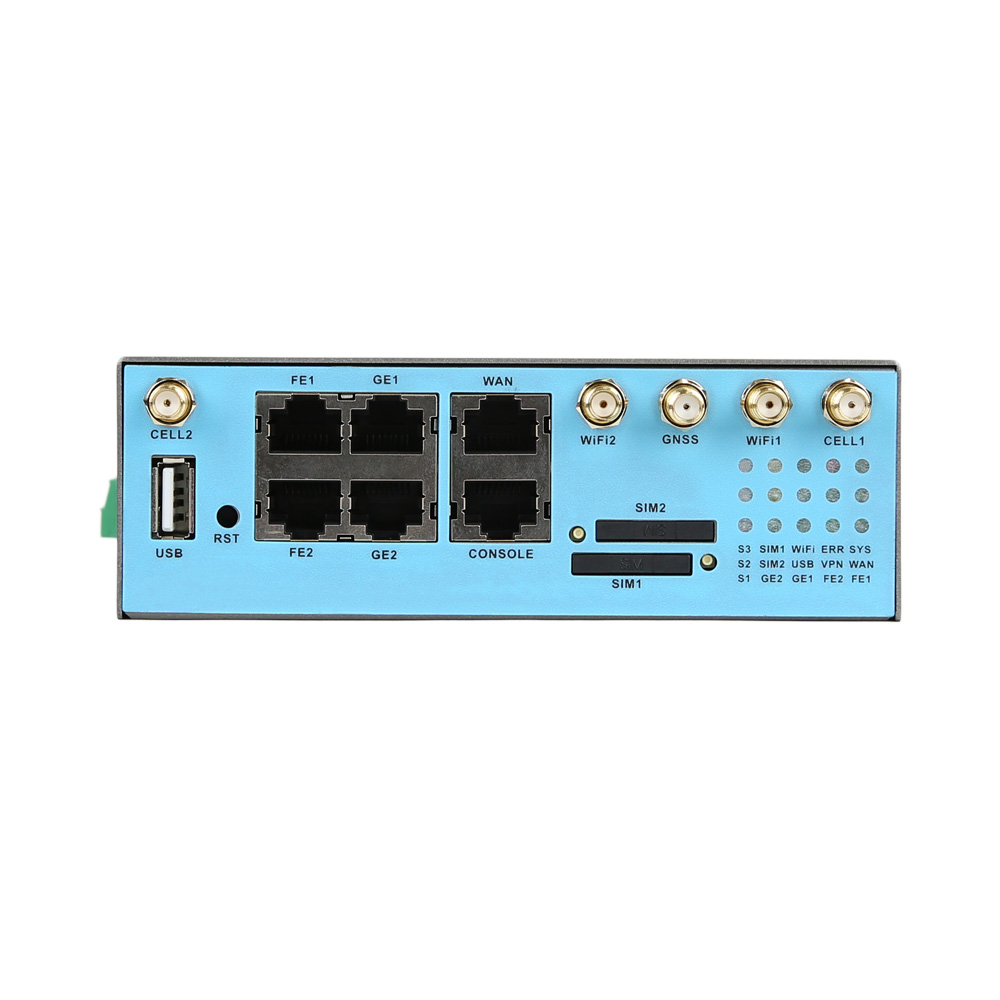

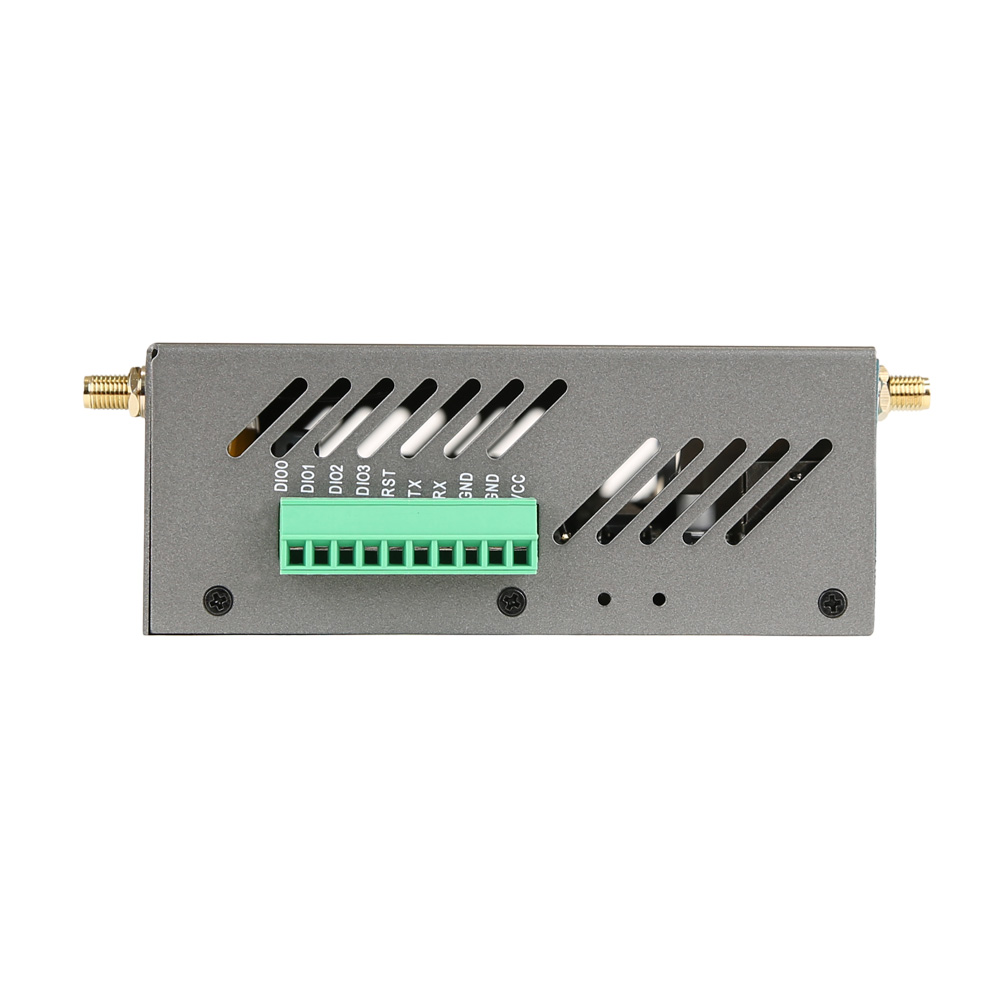

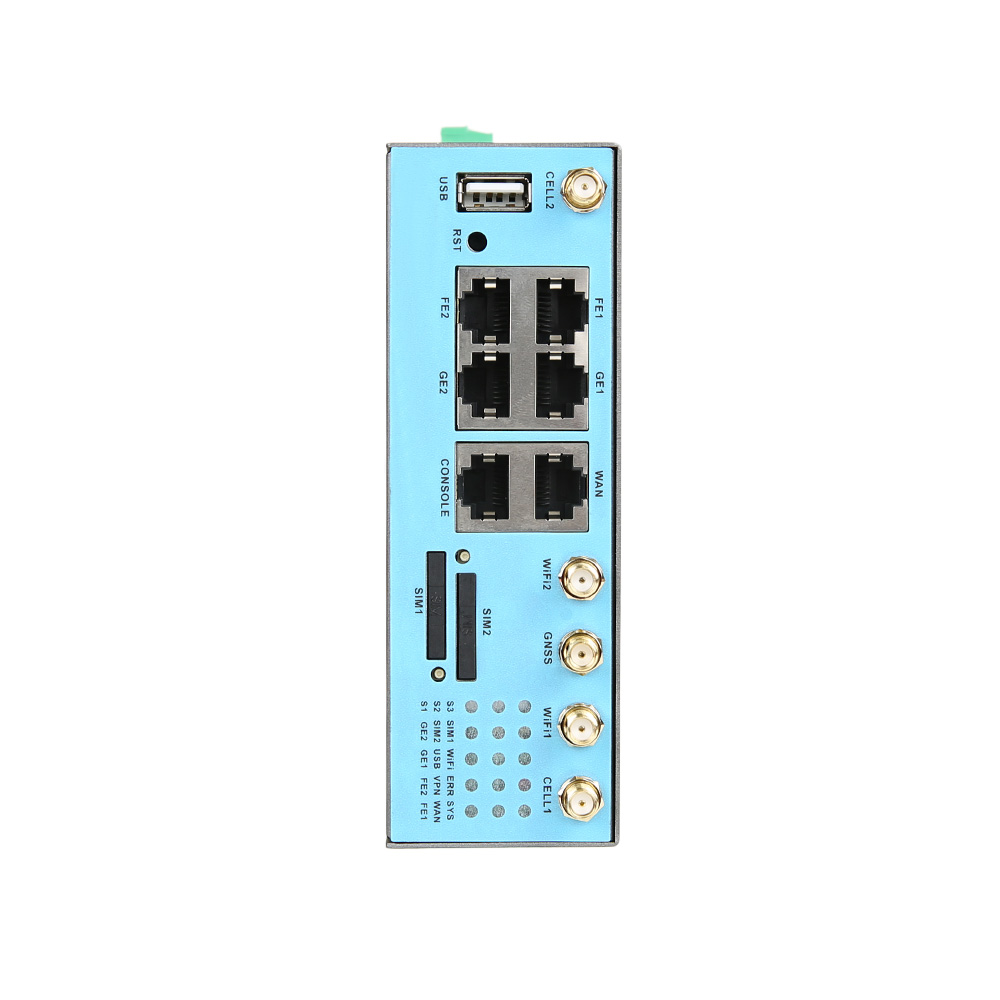

Rich Interface
VPN Safety and Security
Offer more VPN safety application schemes, data transmission reach to financial grade standard. E-Lins wireless modems support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, Wireguard, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.
Dual Power Input
The H900pf Dual SIM 5G modem supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.
Three Types of Installation (Din-rail, wall-mount, Desktop)
Beidou / GPS is supported
Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900pf 5G modem easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
Remote Management System
Configure, monitor and securely manage your network endpoints remotely using the E-Lins NMS Cloud Management System.
Product Use Cases
All Solutions →
Self-Service Sleep Pods with E-Lins 5G Router
E-Lins industrial 5G gateways deliver ultra-reliable, high-bandwidth cellular connectivity for autonomous kiosk platforms and modular smart infrastructure projects globally.
Read Use Case →2024 Smart Safety Pods with Telematics Gateway
Integrated tracking routers provide telemetry analytics, live health-monitoring metrics, and VPN tunnel security for smart modular platforms.
Connected Outdoor Kiosks: Real-time Wireless Router
Ensure continuous operations with dual SIM redundancy, robust WAN failover, and active connection monitoring for point-of-sale systems.
Dock Automation with Rugged M2M Routers
Industrial-grade metal casing makes the routers optimal for harsh marine ports, handling temperature swings, vibration, and dust.
