H820QO-B

Technical Specifications

<img title="H820QO 4G Router Features" src="https://www.szelins.com/uploadfile/userfiles/image/20190701/20190701072439_64273.png" alt="H820QO 4G Router Features" />
<h2><strong>KEY FEATURES</strong></h2>
Multi-carrier 2G/3G/4G LTE support with SIM card slot; supports LTE Advanced with SIM-based auto-carrier selection, dual SIM option

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding)

IP67/IP68 level water proof and dust proof; strong case is ruggedized for vibration, shock

Built-in 802.3af/at standard compliant PoE PD

Built-in high gain internal Cellular and WiFi antenna, with reserved connectors for external high gain antennas

MIMO supported

Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP

2.4Ghz WiFi built-in or option with Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz, Wave2, MU-MIMO option)

Certified 3G/4G/LTE enterprise/industrial grade internal modems

Built-in transient and reverse polarity voltage protection

5–40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

Beidou, GPS, GNSS support (option)

Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi

Ruggedized to ensure always-on connectivity

Create real-time alerts to monitor uptime

Offer secure, guest WiFi to passengers

Advanced security, VPN, and stateful firewall to protect sensitive data

Pole mount, Desktop, Wall mount and Din-rail mount of installation
<h2><strong> FEATURES</strong></h2>
<table class="ke-zeroborder" border="0">
<tbody>
<tr>
<td colspan="2">Main feature</td>
</tr>
<tr>
<td>WAN</td>
<td>Cellular 3G/4G LTE (FDD/TDD)

WiFi as WAN

Failover/Failbackand Load Balance (Bandwidth bonding)

Advanced Modem Failure Check

IP Passthrough

WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)</td>
</tr>
<tr>
<td>LAN</td>
<td>DHCP Server, Client, Relay

DNS and DNS Proxy

DDNS

UPnP

DMZ

Multicast/Multicast Proxy

QoS (DSCP and Priority Queuing)

MAC Address Filtering</td>
</tr>
<tr>
<td>WiFi</td>
<td>2.4Ghz 802.11a/b/g/n default;

WPA2 Enterprise (WiFi)

Hotspot/Captive Portal

SSID-based Priority

Option:

Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent

802.11 a/b/g/n/AC, Wave2, MU-MIMO;

Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz);

High gain WiFi module option;</td>
</tr>
<tr>
<td>VPN and Routing</td>
<td>IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option);

OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP;</td>
</tr>
<tr>
<td>Management</td>
<td>E-Lins Enterprise Cloud Network Management System (NMS)

Web UI, API, CLI/SSH

Data Usage Alerts (router and per client)

Advanced Troubleshooting (support)

Device Alerts

SNMP

SMS control

TR-069 option</td>
</tr>
<tr>
<td>Security</td>
<td>RADIUS and TACACS+ support

802.1x authentication for Ethernet

Certificate support

ALGs

MAC Address Filtering

Advanced Security Mode (local user management only)

Per-Client Web Filtering

IP Filtering

Content Filtering (basic)

Website Filtering

Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address

Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)</td>
</tr>
<tr>
<td>Optimized IP Communications</td>
<td>Automated WAN Failover/Failback support

WAN Affinity and QoS allow prioritization of VoIP services

Advanced VPN connectivity options to HQ

SIP ALG and NAT to allow VoIP and UC communications to traverse firewall

MAC Address Filtering

802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN

Private Network support (wired and 4G WAN)</td>
</tr>
<tr>
<td>Firmware update</td>
<td>support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option;</td>
</tr>
<tr>
<td>Others</td>
<td>Cellular and WiFi MIMO supported;

Syslog (local and remote);

DDNS;

DNS proxy;

Optimized EMC design;

Real-time clock (NTP, support update with defined hours);

WAN/LAN/Memory statistics;

Local/remote profiles backup and retrieve;</td>
</tr>
<tr>
<td colspan="2">Feature Details</td>
</tr>
<tr>
<td>Redundancy and Load Balancing</td>
<td>Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP;

Auto-dial feature, keep alive link;

LCP, ICMP check;

Built-in watch dog;

Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy;

Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate)</td>
</tr>
<tr>
<td>Intelligent Routing</td>
<td>UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option;</td>
</tr>
<tr>
<td>Management</td>
<td>web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069;

Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based);</td>
</tr>
<tr>
<td>VPN</td>
<td>IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES), IPSec over L2TP support;

GRE tunneling;

PPTP support;

L2TP, L2TP over IPSec support;

VPN pass-through;

OpenVPN support (option);

DMVPN (option);

Certificate support (option);

multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;</td>
</tr>
<tr>
<td>SMS, SMSControl and Alarm</td>
<td>Receive and Send the SMS;

WAN Cell APN configuration via SMS;

SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option;

SMS text sending and receiving;</td>
</tr>
</tbody>
</table>
<h2>SPECIFICATIONS</h2>
<table class="ke-zeroborder" border="0">
<tbody>
<tr>
<td colspan="3">Main</td>
</tr>
<tr>
<td colspan="2">Hardware</td>
<td>CPU: Qualcomm chipset, 650Mhz;

RAM: 1Gb DDR2, can be extended with requirement;

Flash: 128Mb, can be extended with requirement;</td>
</tr>
<tr>
<td colspan="2">WAN</td>
<td>Integrated Category 12/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover);

One or two 10/100 Fast Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet;

WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac;</td>
</tr>
<tr>
<td colspan="2">LAN</td>
<td>WiFi: 802.11 a/b/g/n/AC;

1~2 LAN/WAN switchable 10/100 Fast Ethernet ports;</td>
</tr>
<tr>
<td colspan="2">Ports & Button</td>
<td>Power (2 Pin Terminal Block for wire connection)

1~2 Ethernet LAN/WAN

Console Port (on board)

Reset button</td>
</tr>
<tr>
<td colspan="2">Power</td>
<td>Dual Power Inputs / Power Failover;

POE (Power over Ethernet, support 5-40VDC default, it the POE voltage is 48V, please order 5-60VDC version);

DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations);

For 9–24 VDC installations, use a 3 A fuse;

For > 24 VDC installations, use a 2.5 A fuse;

Reverse polarity and transient voltage protection per ISO 7637-2

Ignition sensing (automatic ON and time-delay OFF);

Power consumption:

Idle: typical=100mA@12VDC; Maximum=500mA@12VDC;

Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC;

12VDC 2A adapter recommended</td>
</tr>
<tr>
<td colspan="2">LEDs</td>
<td>SYS*1, Cell Online*2, Cell Signal*2, WAN*1, LAN*1, WiFi*1</td>
</tr>
<tr>
<td colspan="2">UIM/SIM Card Slot</td>
<td>Support 1.8V/3V UIM/SIM cards, one sim card slot (option for 2 sim card slots)</td>
</tr>
<tr>
<td colspan="2">Antennas</td>
<td>Built-in internal 14dbi 2G/3G/4G antenna and WiFi antenna

Option for N-type high gain antennas</td>
</tr>
<tr>
<td colspan="2">Size</td>

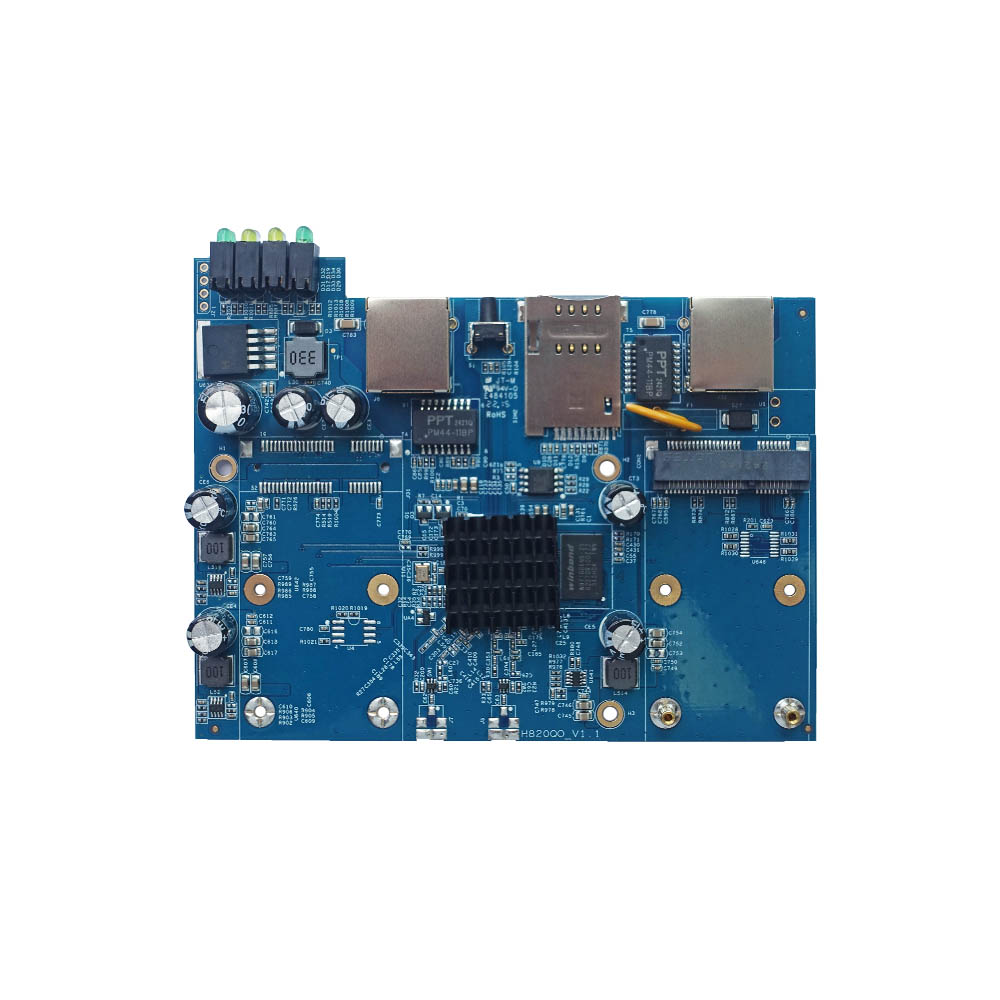

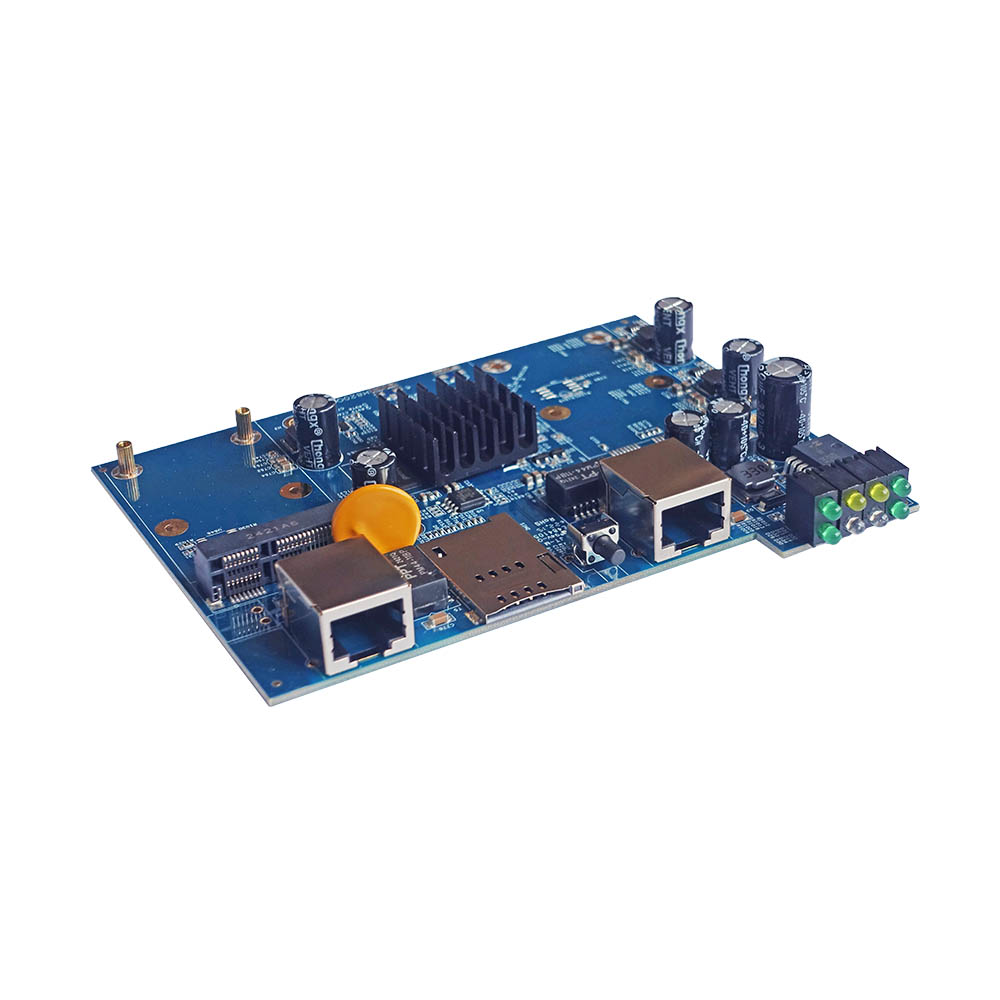

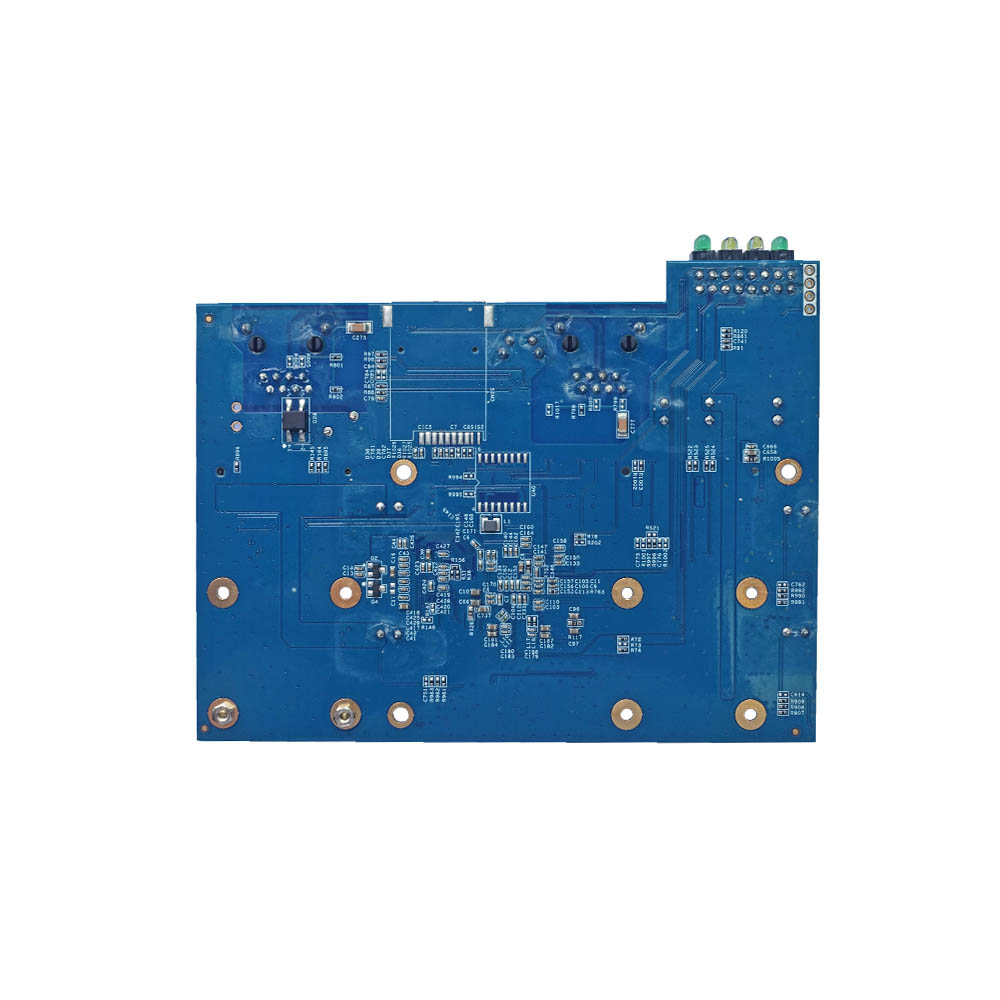

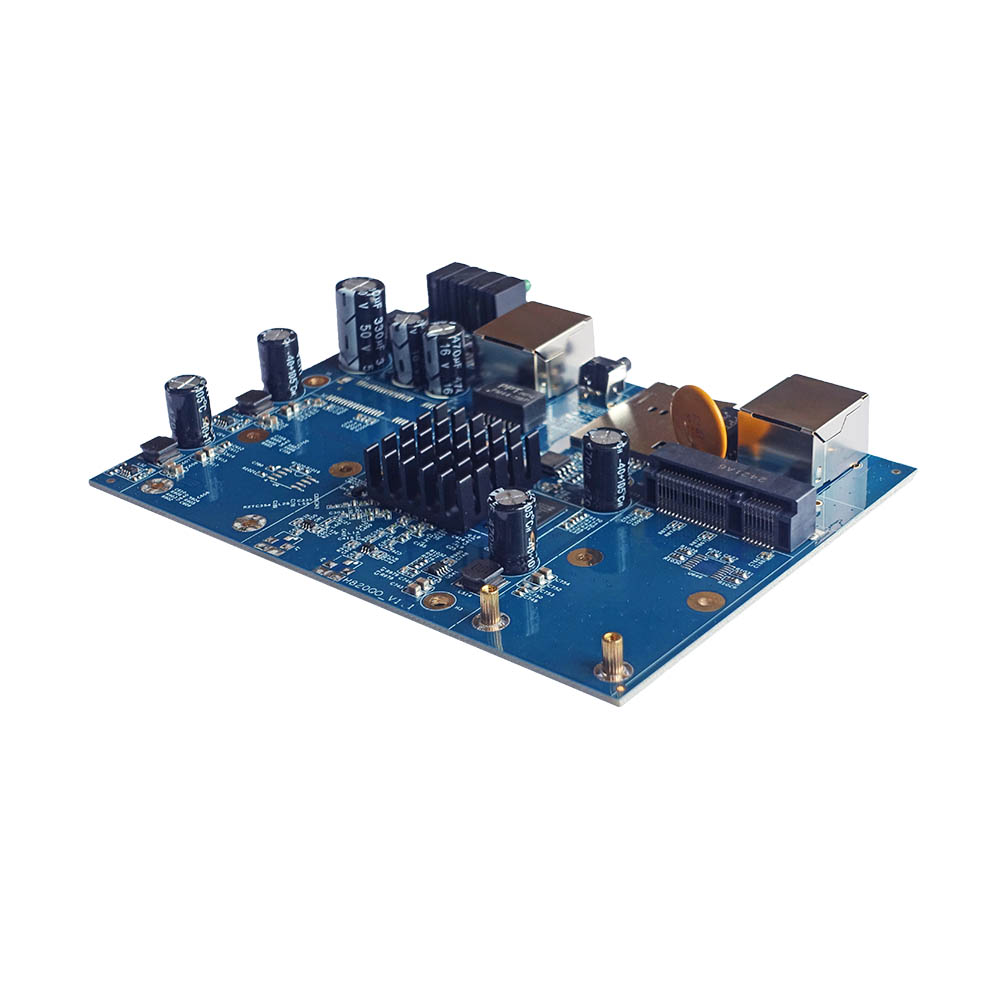

<td>PCBA: 125mm x 105mm x 20mm

With case: 185mm x 172mm x 82mm</td>
</tr>
<tr>
<td colspan="2">Weight</td>
<td>About 560g (Without accessories)

About 750g (With accessories)</td>
</tr>
<tr>
<td colspan="2">Temperature</td>
<td>All models: −40 °C to 75 °C ambient air operating;

All models: −45 °C to 85 °C storage;</td>
</tr>
<tr>
<td colspan="2">Humidity

(non-condensing)</td>
<td>5% to 95% operating

5% to 95% storage</td>
</tr>
<tr>
<td colspan="2">Case</td>
<td>IP67/IP68 grade anti-dust and anti-water enclosure for outdoor installation;

PC+anti-UV+antioxidation OSP;

Light-gray color;

Wall-mount, Pole Mount;

Customization is available;</td>
</tr>
<tr>
<td colspan="3"></td>
</tr>
<tr>
<td>Compatible Mobile Networks</td>
<td colspan="2">4G LTE (FDD/TDD)

UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

GSM EDGE/GPRS

TD-SCDMA</td>
</tr>
<tr>
<td>Cellular Frequency</td>
<td colspan="2">4G FDD LTE:

Band 1 – 2100Mhz

Band 2 – 1900Mhz

Band 3 –1800Mhz

Band 4 – AWS(1700/2100Mhz)

Band 5 – 850Mhz

Band 7 – 2600MHz

Band 8 – 900Mhz
Band 9 – 1700Mhz

Band 12 – 700Mhz

Band 13 – 700Mhz

Band 14 – 700Mhz

Band 17 – 700Mhz

Band 18 – 850Mhz

Band 19 – 800Mhz

Band 20 – 800Mhz

Band 21 – 1500Mhz

Band 25 – 1900Mhz G Block

Band 26 – 850Mhz

Band 28 – 700Mhz

Band 29 – 700Mhz (SDL)

Band 30 – 2300Mhz

Band 31 – 450Mhz

Band 32 – 1500Mhz (SDL)

Band 66 – 1700Mhz

Band 72 – 450Mhz

And other more FDD band…

4G TDD LTE (TD-LTE):
Band 48 – 3600Mhz (CBRS)

Band 46 – 5200Mhz

Band 43 – 3700Mhz

Band 42 – 3500Mhz (CBRS)

Band 41 – 2500/2600Mhz

Band 40 – 2300Mhz

Band 39 – 1900Mhz

Band 38 – 2600Mhz

And other more TDD band…

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD):
2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19)

Quad-band EGSM 850/900/1800/1900Mhz;

3G TD-SCDMA: 2010~2025MHz/1880~1920MHz

Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.</td>
</tr>
<tr>
<td>Bandwidth</td>
<td colspan="2">4G LTE

FDD LTE:
downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps;
uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps;

TDD LTE: 150Mbps downlink, 50Mbps uplink;

DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps;

HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps;

HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA:Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS:Downlink/Uplink 384 kbps;

EDGE:Downlink 384 kbps, Uplink 118 kbps;

GPRS:Downlink 108 kbps, Uplink 42.8 kbps;

3G TD-SCDMA: 2.8Mbps

Notes: the bandwidth is peak value. Real value depends on carrier network support.</td>
</tr>
<tr>
<td>Network and Band Lock Feature (Option)</td>
<td colspan="2">Default is unlocked, can use this feature to lock</td>
</tr>
<tr>
<td colspan="3">Wi-Fi (WLAN)</td>
</tr>
<tr>
<td>Wi-Fi</td>
<td colspan="2">802.11a/b/g/n/AC;

Can be used as AP and client;

Frequency Range:
2.4Ghz: 2.412 ~ 2.472Ghz

5Ghz Band 1: 5150~5250MHz

5Ghz Band 4: 5475~5850MHz

Speed:

802.11n in 300Mbps;

802.11AC options in 600Mbps, 867Mbps, 1300Mbps, 1730Mbps, 2033Mbps, or even higher (Depends on WiFi module option);

Notes: default is 802.11a/b/g/n 2.4Ghz WiFi.

Option:

Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent

802.11 a/b/g/n/AC, Wave2, MU-MIMO;

Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz);

High gain WiFi module option;</td>
</tr>
<tr>
<td colspan="3">Others</td>
</tr>
<tr>
<td>Warranty</td>
<td colspan="2">1 Year default. Option extends up to 5 years maximum;

Other warranty services can be customized;</td>
</tr>
<tr>
<td>Package Contents</td>
<td colspan="2">H820QO Series Outdoor 4G CPE Router

Others depends on option features and requirement</td>
</tr>
</tbody>
</table>
