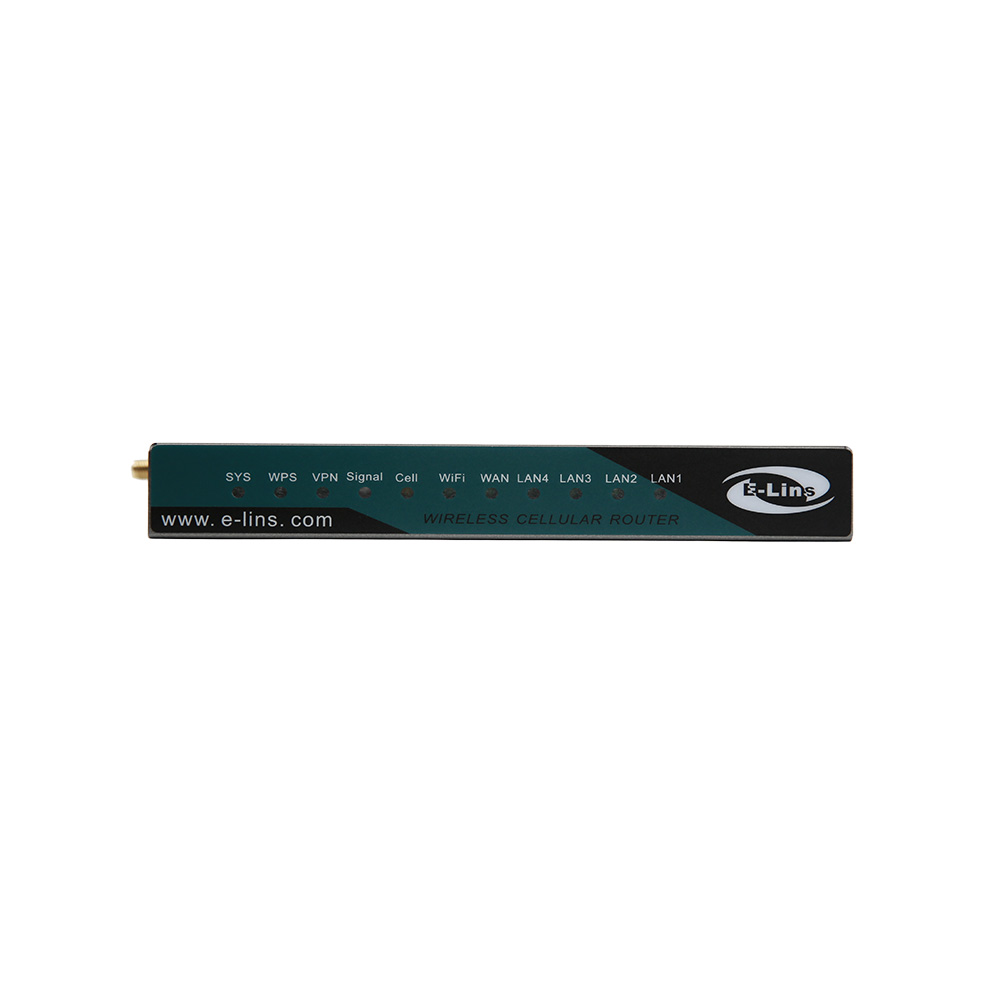

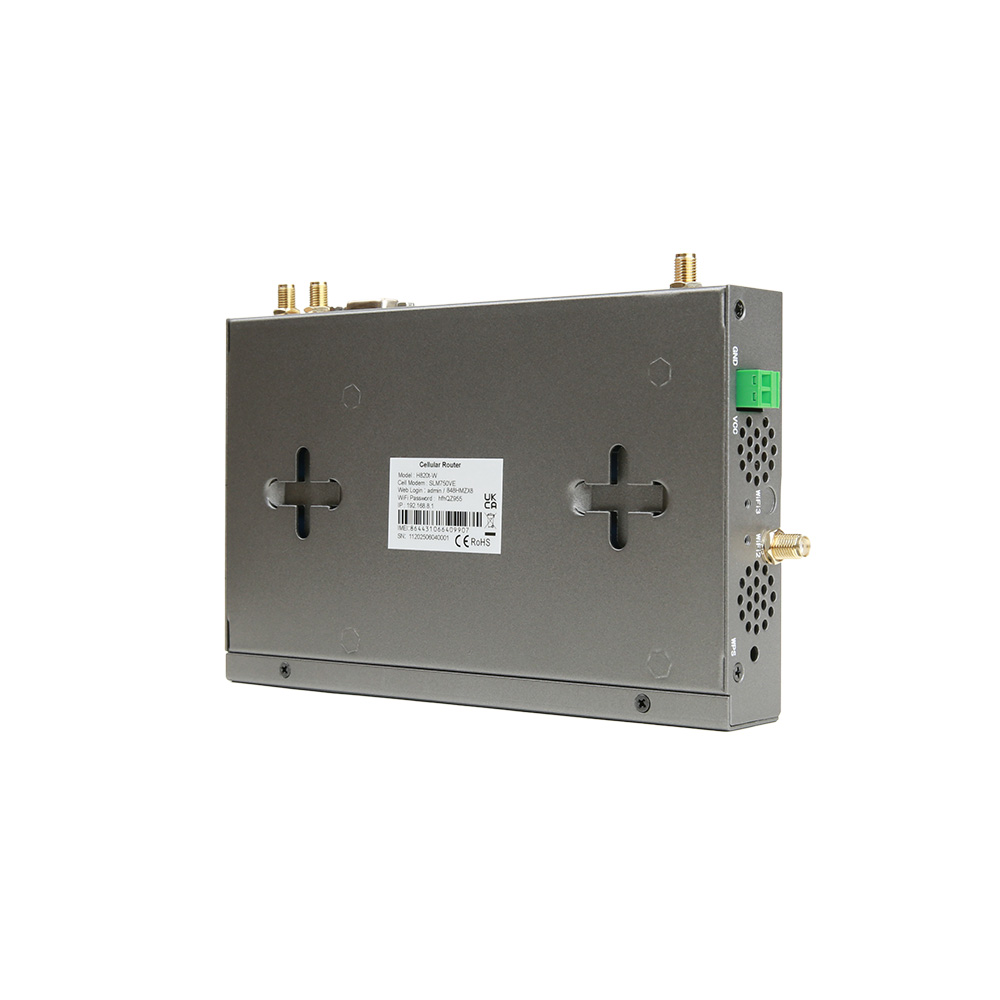

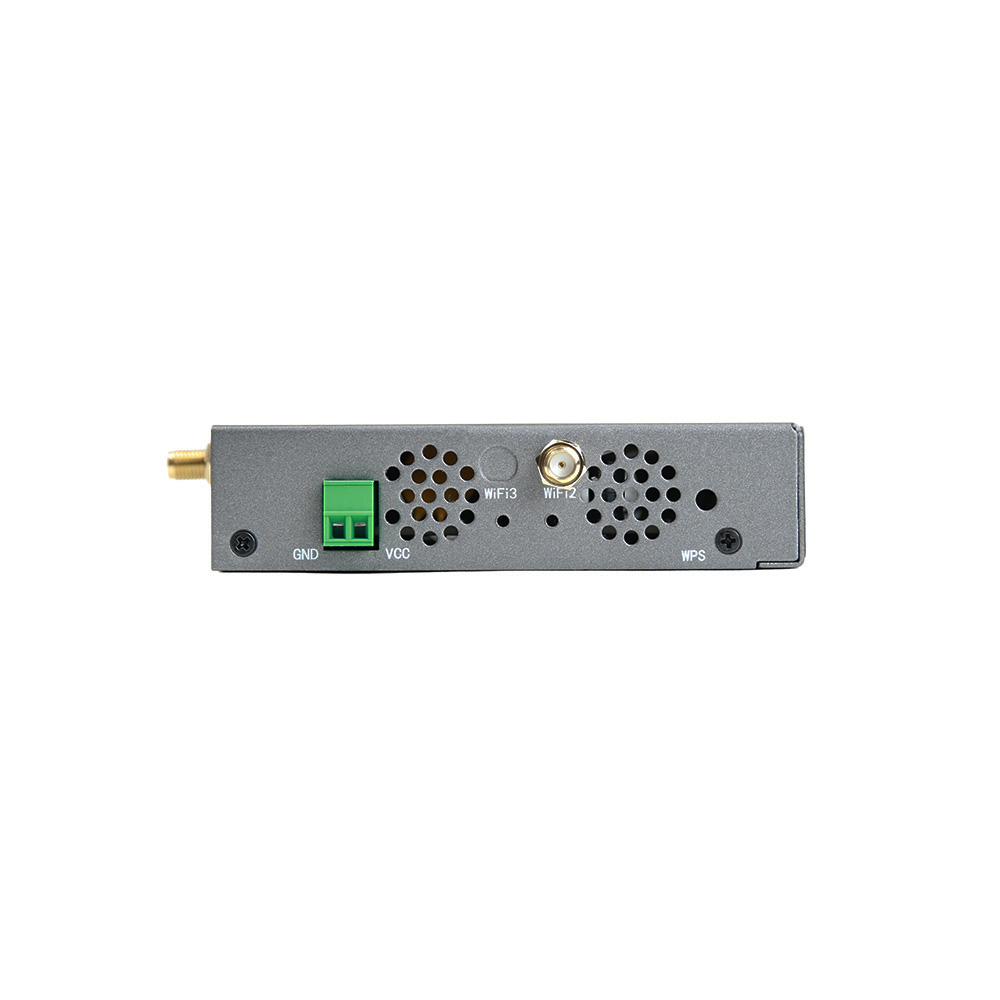

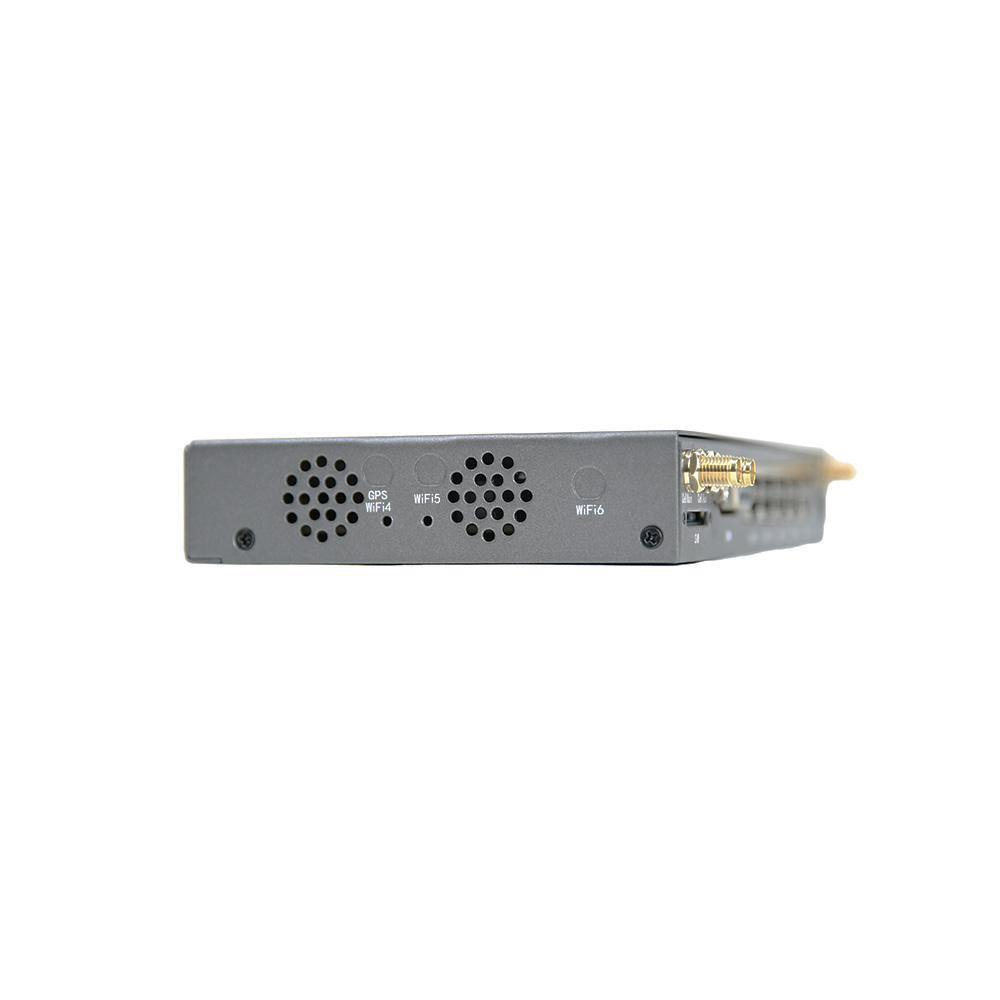

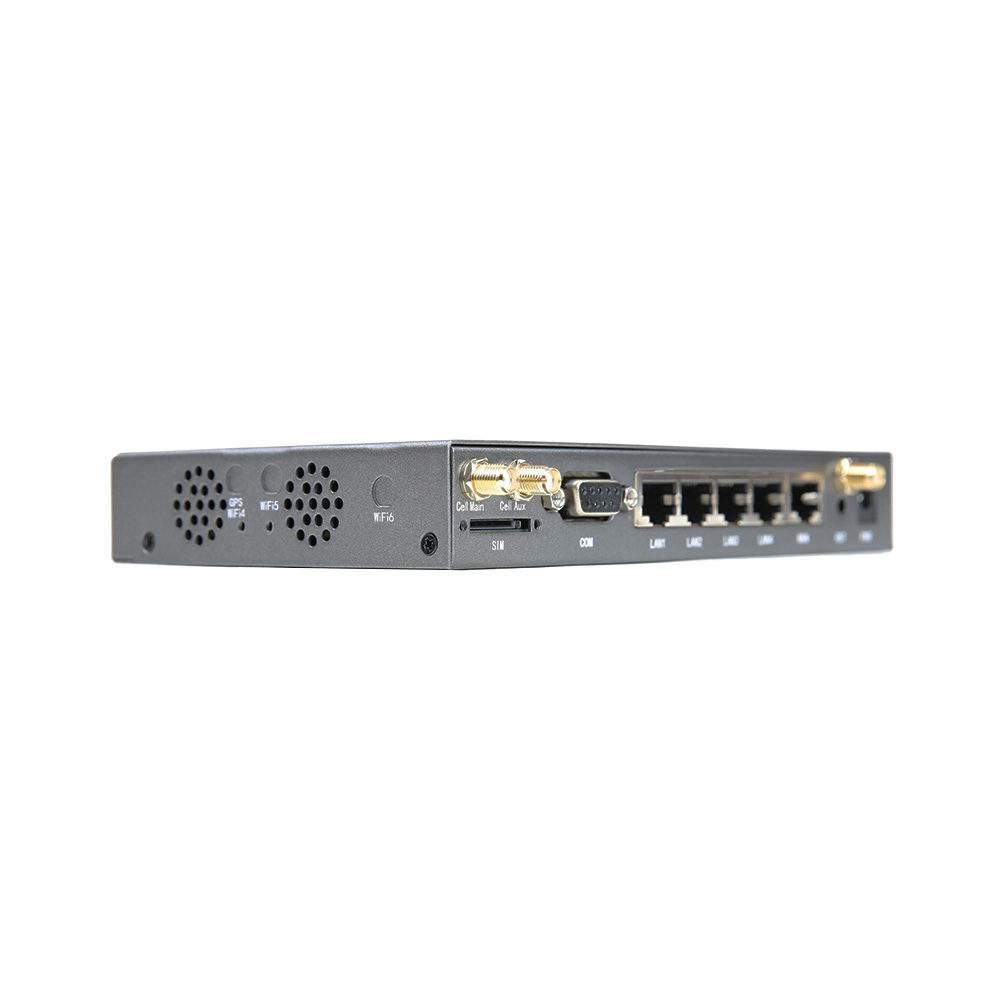

H820t-P1

Brief

The E-Lins industrial routers have been specially designed to be installed in extreme environmental conditions such as exterior racks, urban elements (street lights, information screens, bus stops, etc.), industrial warehouses, production lines, vehicles, exterior telesurveillance systems, etc.

Highly resistant elements have been used to design and manufacture these industrial routers, both electrically as well as mechanically and resistance to extreme temperatures has been priorized by using low consumption components and increasing ventilation.

E-Lins has developed an industrial wireless router H820, which also has ADSL. This industrial 2G/3G/4G router possesses specific characteristics which has enabled it to comply with the demanding requirements impossed by the utilities market (suppliers of Electricity, Gas, etc.), hence making it compliant with most industrial router scenarios.

What This Product Does

Get and share the freedom of 2G/3G/4G! The H820 2G/3G/4G Wireless N Router allows users to share mobile 2G/3G/4G broadband connection with machines nearly anywherein 2G/3G/4G coverage. Insert a SIM/UIM card (some networks flash the SIM/UIM card into the router), with simple configuration, a cellular broadband connection is created, and Wi-Fi hotspot is instantly established.

2G/3G/4G Wireless Sharing H820 series router features blazing high speed, allowing users to share a 2G/3G/4G mobile broadband with different devices via wired or wireless connection.

Tests in the Field-High Compatibility

Compatibility is the most important aspect to consider when you’re selecting a 2G/3G/4G router. To ensure the best compatibility, E-Lins has made certain that our 3G/4G Routers are compatible with the ISPs in the regions in which they are sold. We have teams around the globe continually testing our Routers with the networks and carriers to ensure that end users can feel confident that their routers will operate flawlessly where they live and work.

2G/3G/4G and Wired WAN Connection Redundancy (Backup Strategy)

The H820 Router stands out with its 2G/3G/ 4G and WAN connection back-up, which keeps users online when one connection fails. E-Lins’ 2G/3G/4G Router provides users with both 2G/3G/4G Preferred and Wired WAN Preferred back-up modes, while other brands provide one or the other. This brings users a high degree of flexibility when users are setting up the networks with considering connection costs and length of downtime.

Wireless N Speed & Range

Complying with the IEEE 802.11n standard, H820 Router can establish a WiFi wireless network with transmission speeds of up to 150Mbps, while mitigating data loss over long distances and through obstacles in a small area locally. Above all, users can easily pick up their wireless network’s signal at longer distances from the router, where with legacy 11g products they would have to be much closer.

Highlights

Compatible with LTE(FDD, TDD) and 3G/2G networks, tested in the field (refer to datasheet for details). 2G/3G/4G and WAN connection Backup guarantees an “Always-online” Internet connection

Industrial class,with sim card slot Interface: 1 WAN RJ45 port, 4 LAN RJ45 Ports (WAN RJ45 can convert into LAN R45 to get 5 LAN RJ45 ports) Optional additional port: RS232 or RS485 port Band: UMTS HSDPA/HSUPA/HSPA/HSPA+/DC-HSPA+: 2100Mhz or 850/1900/2100Mhz or 850/900/1900/2100Mhz/AWS EDGE/GPRS/GSM: 850/900/1800/1900Mhz;

CDMA1x/EVDO: 800/1900Mhz or 450Mhz optional; LTE: Band 1–2100Mhz,Band 2–1900Mhz,Band 3–1800Mhz,Band 4–AWS(1700/2100Mhz),Band 5–850Mhz,Band 7–2600MHz,Band 8–900Mhz,Band 12–700Mhz,Band 13–700(B13)Mhz,Band 17–700(B17)/AWS,Band 19 – 800Mhz,Band 20–DD800Mhz,Band 21,Band 25 – 1900Mhz G Block, Other FDD LTE band(some bands are notlisted)

LTE: TDD LTE (TD-LTE) Band 41 – 2500/2600Mhz, Band 40(2300Mhz), Band 39(1900Mhz), Band 38(2600Mhz), or other TDD LTE band (some bands are not listed)…

VPN(PPTP,L2TP,IPsec,GRE),SNMP,VRRP,DDNS, DHCP, NAT/NAPT,Web,Auto-dial,always online,watch-dog; Line WAN(xDSL), Cellular, WiFi Client can backup, two H800 can work as dual sim dual module backup Option feature: 1) MIMO Cellular diversity receiving (with this feature, router can get better signal and speed) 2) WiFi Feature 3) GPS feature 4) Serial to cellular feature, RS232 or RS485 can choose one 5) DC5V~50V (default is DC5V~40V) 6) I/O ports 7) Dynamic Route BGP, OSPF

Industrial Application Remote Data Monitor and Control CCTV, security surveillance Water, gas and oil flow metering and schedule AMR (automatic meter reading) Power station monitoring and control Remote POS (point of sale) terminals, ATM, Traffic signals monitor and control, Traffic info guidance Oil field, weather forecast, environmental protection, street lamp monitoring and control Early Warning of Mountain Torrent Fleet management Power distribution network supervision Central heating system supervision Weather station data transmission Hydrologic data acquisition Vending machine Telemetry, SCADA Vehicle logistics and diagnostics controlling Parking meter and Taxi Monitor Telecom equipment supervision (Mobile base station, microwave or optical relay station) etc.

Features

 Key Points

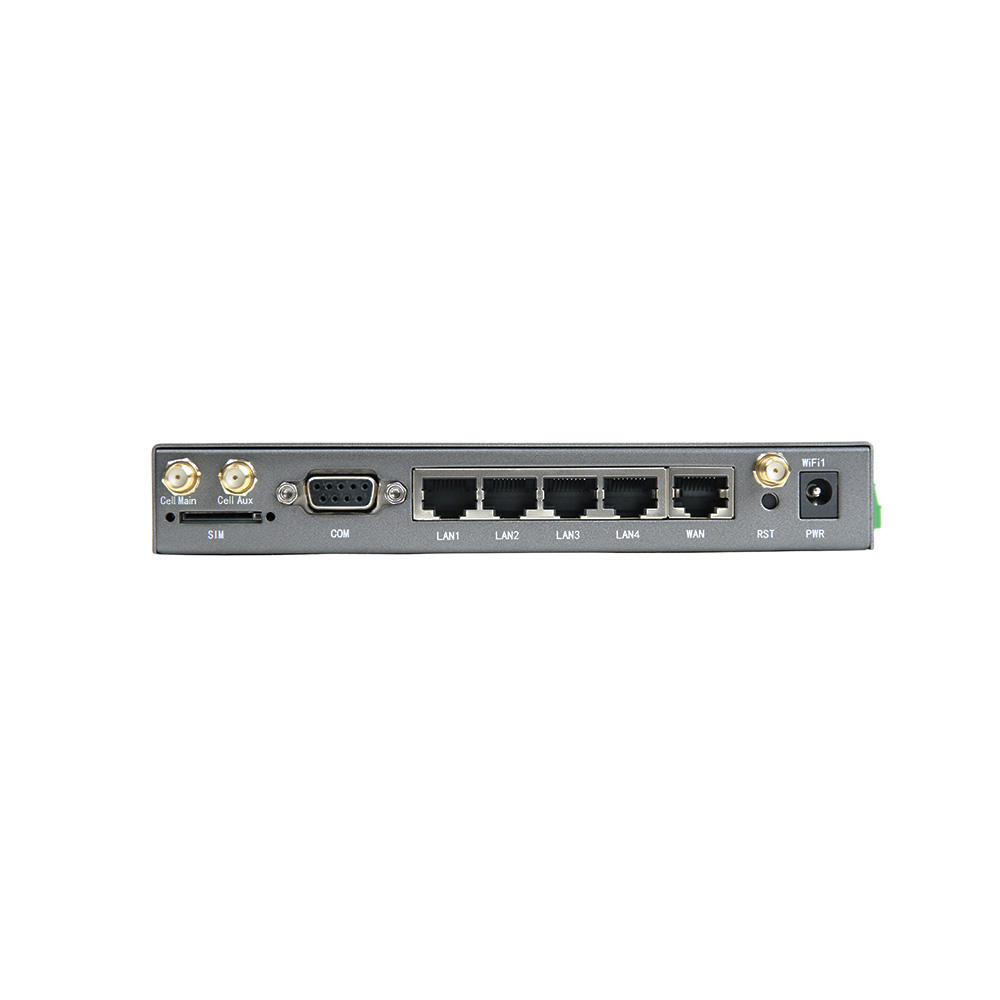

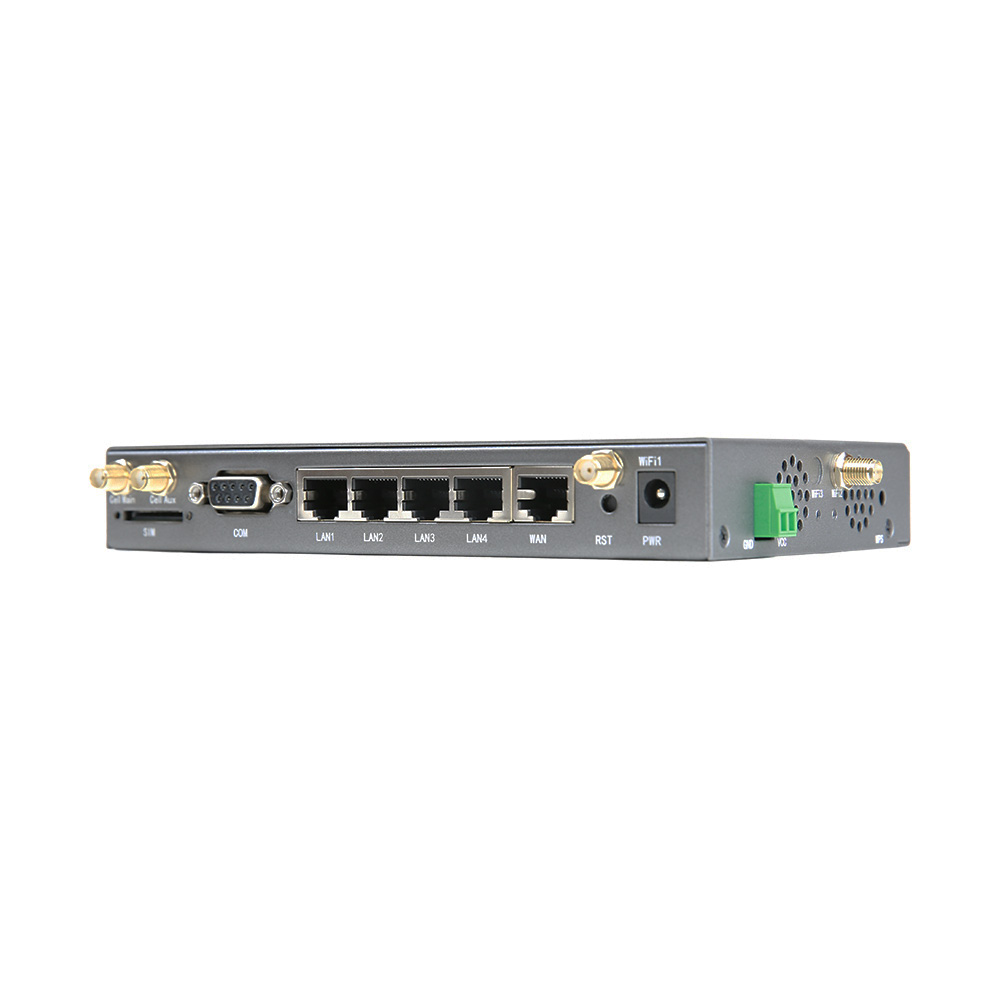

1. Built-in 2G/3G/4G industrial cellular module and sim card slot, insert SIM/UIM card to work directly. 2. Auto-dial feature, keep alive link 3. Built-in watch dog 4. 1 WAN RJ45 port + 4 LAN RJ45 port(WAN RJ45 can convert into LAN R45 to get 5 LAN RJ45 ports) 5. VPN (PPTP, L2TP, IPSec, GRE, Tunnel), SNMP 6. Standard SMA antenna can be replaced with high gain type 7. 1 DB9 port for DTU feature (Serial to Cellular Gateway feature,RS232 or RS485 option) 8. WiFi 802.11b/g/n 150Mbps (optional), can choose 300Mbps. 9. RJ45 WAN (xDSL) and Cellular backup each other (Route Fail Over Feature) 10. Two H820 can backup each other if one H820 line failed. (to be Dual sim dual module feature) 11. Always online, Reboot if the connection is failed. 12. WiFi can be used as WiFi client 13. Cellular, WAN RJ45 and WiFi Client can failover backup each other redundancy. 14. SMS/Voice call to control router to be online and offline (optional), SMS text sending and receiving (optional) 15. GPS (optional) 16. VRRP 17. RIP OSPF BGP (optional) 18. I/O port *2 (optional)

Details

Advanced WWAN technology for the utmost reliability – Embedded WWAN interface, fully integrated into the router engine. All the E-Lins intelligent network features are available through the WWAN interface. – Built-in module modem, with SIM card tray, insert SIM card to work directly, no need dongles. – Detailed WWAN diagnostics for SLA audition and accounting. Information such as serving and neighbour cell received signal power, the operating frequency band, the WWAN technology used and the instant bitrate is available both in the router CLI and in its cellular interface MIB, so it can be retrieved by the SNMP management station at any time. Furthermore, a history report of the received signal power evolution in the past hour is also available. – AT command Line interface for low-level RF module management (sim-lock, WWAN carrier customization, etc).

Ready for WAN Ethernet services The full VLAN support, the state of the art in routing and bridging features, QoS and VRF-Lite addresses this router for Metro-Ethernet services. Furthermore, the Standard and Private Ethernet MIB support in these routers allows for SNMP remote management.

100% Wireless solution(version with WLAN WiFi Feature) An embedded WLAN Access Point (802.11b/g/n in H820 router) with dual external WiFi antennas (one in the H820, the other is external) can be equipped inside the router, providing cellular connectivity to local WiFi equipment. Support for IEEE 802.11 security guarantees communication privacy and confidentiality in the Wireless LAN segment.

ADSL/WWAN integrated and compact solution The E-Lins H820 router has both ADSL and WWAN interfaces in addition to a 2 port switch and the possibility of WLAN in a compact and competitive device thus meeting all branch offices’ communication needs.

Serial port for PoS/transaction services or to provide a WAN access through a point-to-point line (Version with serial port feature) – Compatible with any company point-to-point line terminal, asynchronous serial (RS.232, raw ASCIL, RS-485), synchronous serial (X.25, SDLC) or even Ethernet (SNA). – Compatible with point-to-point WAN services up to 2Mbps (Frame Relay, HDLC, X.25). – Efficient migration to IP in costs for payment applications over point-to-point lines. – The router converts serial transactions to IP (XoT, DLSw, transparent transport). This means that the point-to-point PoSs currently in the company can be used.

Best in class performance in mobile VPNs – Crypto-processor incorporated for “wire-speed” data encryption in VPN scenarios. – Fully parameterized IPSec Client/Server. Advanced IPSec features such as PKI encryption (Digital Certificates), extended authentication, and Reverse-Route Injection guarantee compatibility with third party VPN solutions. – PPTP/L2TP/IPSec/GRE Tunnels. – IP filtering, MAC filtering and SPI firewall protect the router against DoS attacks.

Carrier-class management – Powerful CLI, adapted for a professional router management. – Human readable configuration files. – Syslog client allows for the report of any event detected by the E-Lins Event Logging System. – SNMP agent with MIB2 and Private MIB support. E-Lins routers can be easily integrated into the Centralized Management System. – Remote router management through the E-Lins Router Management System. – Telnet, SSH2, FTP, TFTP and RADIUS clients – Remote Web – Status check and control via SMS
