H685f-W6
The E-Lins H685f series 5G router with Ethernet is a compact, ruggedized 3G/4G LTE/5G cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.
3D Model
Product Gallery
Introduction Video
Product Overview
5G Mini Router and Cellular Modem: Rugged, Compact, and Ethernet‑Ready
The E-Lins H685 series 5G router with Ethernet is a compact, ruggedized 3G/4G LTE/5G cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.
In addition to the robustness, reliability, security, friendly-using, the H685 5G router with Ethernet is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.
Revolutionizing Connectivity with 5G Modems
As the world embraces ultra-fast wireless communication, the 5G cell modem is emerging as a cornerstone of modern connectivity. These devices are designed to deliver lightning-fast internet speeds, ultra-low latency, and robust network reliability—transforming how people and devices communicate across industries and homes alike. At the heart of this transformation is the 5G cellular modem router, a powerful all-in-one device that combines the functions of a modem and a router. It connects directly to 5G networks and distributes high-speed internet through Ethernet or Wi-Fi, making it ideal for offices, homes, mobile setups, and remote sites. With built-in security features and multi-device support, the 5G cellular modem router offers seamless and secure broadband without the need for traditional wired infrastructure. For industrial, IoT, and consumer applications alike, the cellular 5G modem provides unmatched mobility and flexibility. Whether embedded in autonomous vehicles, surveillance systems, or remote sensors, these modems ensure consistent communication even in challenging environments. Their ability to support high-bandwidth applications like HD video streaming, real-time monitoring, and edge computing makes them a critical tool in smart solutions. Compact yet powerful, the mini modem 5G brings the benefits of 5G to space-constrained environments. Despite its small size, it delivers impressive performance, making it suitable for portable devices, wearables, and on-the-go connectivity solutions. These modems are easy to integrate and deploy, offering plug-and-play convenience with top-tier performance. As technology advances, the demand for intelligent devices rises—and with it, the role of the smart 5G modem. These modems feature intelligent traffic management, failover capabilities, and remote management tools, allowing users to optimize network performance and reliability. Whether used in smart homes, connected factories, or mobile workforces, smart 5G modems represent the future of intelligent wireless connectivity. In conclusion, the era of 5G is here, and the adoption of 5G cell modems and related devices is reshaping how we live, work, and innovate. From compact mini models to industrial-grade routers, 5G modems are unlocking new possibilities across every sector.Highlights
Multi-carrier 2G/3G/4G LTE/5G support with SIM card slot; Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding); Supports LTE Advanced with SIM-based auto-carrier selection; Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP; WiFi (802.11 a/b/g/n or 802.11ac, 2.4Ghz or dual band 2.4Ghz/5Ghz); Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection; 5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover; GPS / Beidou support; Serial Port; DI/DO port * 4; Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi; Ruggedized to ensure always-on connectivity; Create real-time alerts to monitor uptime; Offer secure, guest WiFi to passengers; Advanced security, VPN, and stateful firewall to protect sensitive data; Robust Metal Case is ruggedized for vibration, shock; Desktop, Wall-mount and Din-rail mount of installation; External antenna connectors for high gain antennas replacement; MIMO supported;
E-Lins has a better industrial design
Industrial Design. Rubust and Working in Wide Range Temperature
H685 5G router with Ethernet is industrial designed, excellent function to ensure 7x24h running in stability and reliability;
Wide range power input with dual types of input supported; Alloy-metal case, IP30 protection standard;
Quality industrial grade casing provides robust and reliable 5G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.
With Multi-Powerful-Features
Built-in Industrial Modem Module and SIM Card Slot
The H685 can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM Card Slot, users can insert a SIM to dialup 2G/3G/4G/5G networks directly.

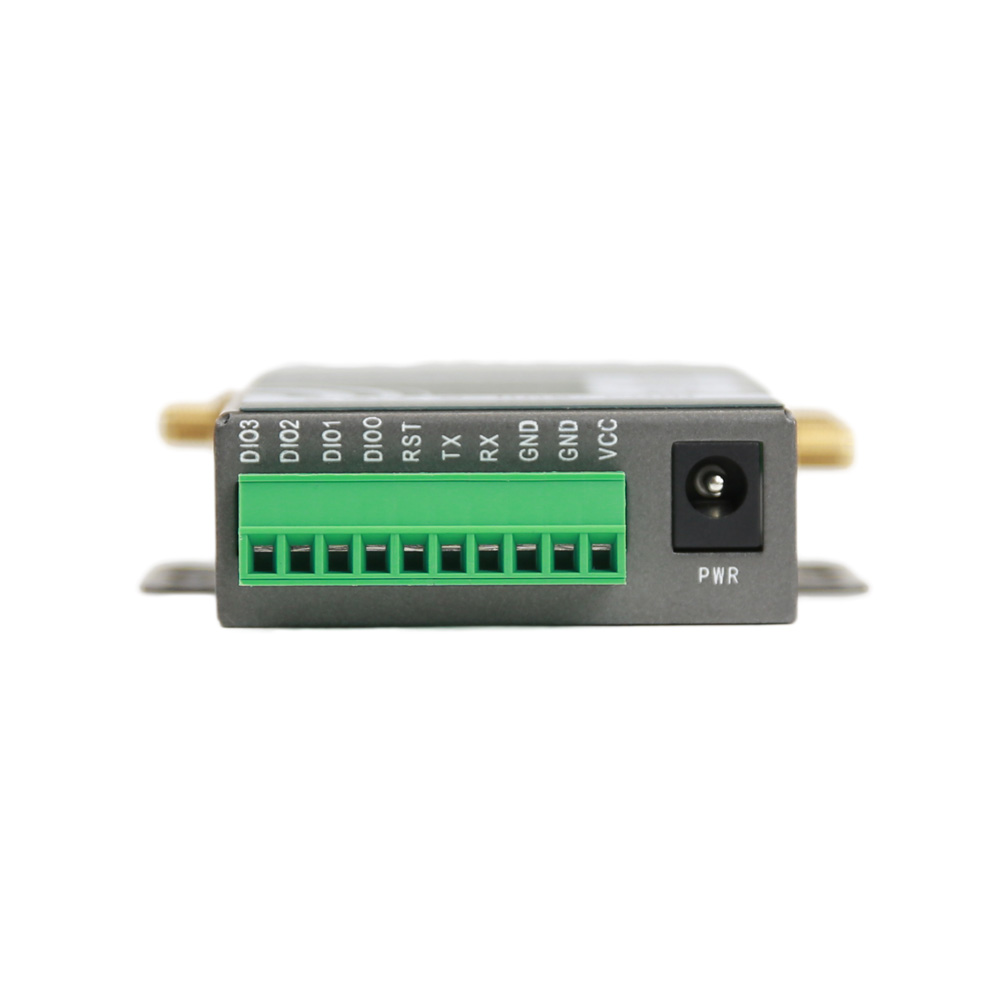

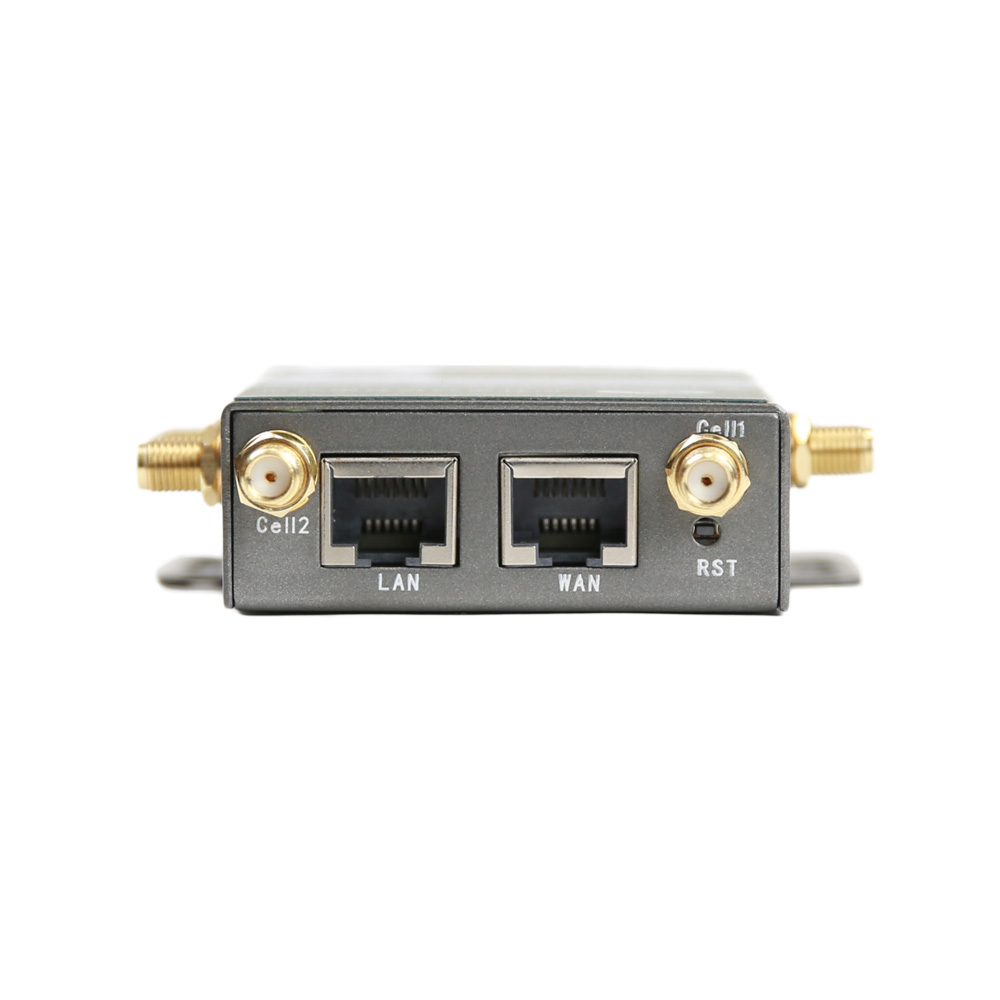

Rich Interface
VPN Safety and Securiy
H685 5G router external antenna offers more VPN safety application schemes, data transmission reach to financial grade standard E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.
Dual Power or Tri Power Input
The H685 smart 5G Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.
Three Types of Installation (Din-rail, wall-mount, Desktop)
Beidou / GPS is supported
Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H685 5G router external antenna easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
Remote Management System
Configure, monitor and securely manage your network endpoints remotely using the E-Lins NMS Cloud Management System.
Product Use Cases
All Solutions →
Self-Service Sleep Pods with E-Lins 5G Router
E-Lins industrial 5G gateways deliver ultra-reliable, high-bandwidth cellular connectivity for autonomous kiosk platforms and modular smart infrastructure projects globally.
Read Use Case →2024 Smart Safety Pods with Telematics Gateway
Integrated tracking routers provide telemetry analytics, live health-monitoring metrics, and VPN tunnel security for smart modular platforms.
Connected Outdoor Kiosks: Real-time Wireless Router
Ensure continuous operations with dual SIM redundancy, robust WAN failover, and active connection monitoring for point-of-sale systems.
Dock Automation with Rugged M2M Routers
Industrial-grade metal casing makes the routers optimal for harsh marine ports, handling temperature swings, vibration, and dust.
Wiki Knowledge Base
Find software user manuals, SDK development kits, technical configurations, firmware updates, and comprehensive developers wiki guides.
Accessories Available
Extend your product networking capabilities with these compatible accessories.
4G/5G Cellular Antenna
High gain external antenna
GPS High Gain Antenna
Active GPS receiver kit
DIN Rail Mounting Clip
Industrial standard mounting bracket
Power Supply Adapter
DC 12V 1.5A power block
